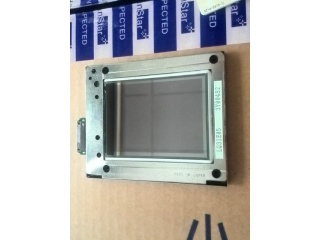

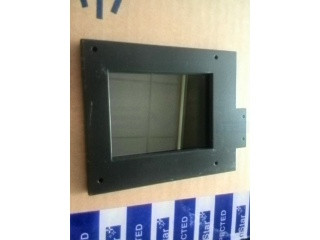

3" Inch TFT-LCD Display
LQ31E05
Sharp
Compare
Compare
Request Quote
Buy
Sell My Stock
Sell
Home
TFT-LCD
Sharp
LQ31E05
3" Inch TFT-LCD Display
LQ31E05
Sharp
Product description
LQ31E05 is a display manufactured by Sharp. It has a resolution of 383 x 234, brightness of 0 cd/m2.
Request Quote
Sell My Stock
Characteristics
Documents
Buyer Protection
Electrical Specs
Backlight:
No B/L
Signal type:
Analog RGB
LCD Signal VGH:
13
LCD Signal VGL:
-20
Signal Interface:
Connector
Signal Interface Model:
00-6200-167-022-800
Signal Interface Connectors:
1
Signal Pins Quantity:
14
Optical specs
Panel type:
TFT-LCD
Panel type child:
a-Si
Resolution:
383 x 234
Reflection:
No
Display Type:
TN
Display Mode:
White
Polarizer Type:
Transmissive
Left Viewing Angle:
45
Top Viewing Angle:
45
Right Viewing Angle:
30
Bottom Viewing Angle:
10
Response Time:
30
Response Time:
50
Light Transmission:
11
Sunlight Readable:
No
Reverse Scan:
No
Mechanical specs
Display Type:
LCM
Size:
3
Aspect Ratio:
7 x 5
Shape:
Flat Rectangle
Vertical Active Area:
44.5
Outline Vertical:
78.5
Outline Depth Max:
5.9000
Mounting:
Face mounting holes (4-Φ5) on left, right bezel
Orientation:
Vertical
Mounting Holes:
Face mounting holes (4-Φ5) on left, right bezel
Sensory specs
Cover Lens:
None
Normal Cover Glass
Standard Coverglass
Strengthened Coverglass
Cover Lens
Touchscreen Type:
None
Resistive
Capacitive
PCAP
EMBEDDED
Weights specs
Minimum Weight:
17
Typical Weight:
17
Maximum Weight:
17
Temperature Specs
Minimum Operating Temperature:
-10
Maximum Operating Temperature:
50
Storage Temperature Minumum:
-25
Storage Temperature Maximum:
60
