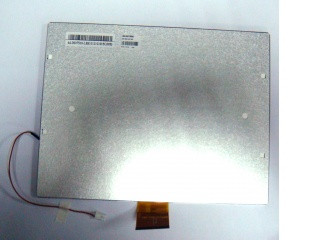

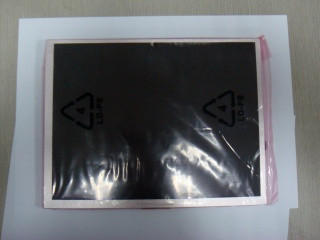

10.4" Inch TFT-LCD Display

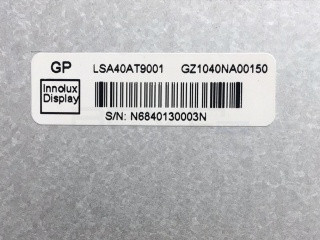

LSA40AT9001
Innolux

Product description

LSA40AT9001 is a display manufactured by Innolux. It has a resolution of 800 x 600, brightness of 250 cd/m2 and contrast of 500:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3S12P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 9.6
Backlight Voltage Typical: 9.6
Backlight Voltage Maximum: 9.6
Backlight Current Typical (mAh): 240
Maximum Backlight Consumption: 2.52
Typical Backlight Consumption: 2.3
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHSR-02VS-1
Blu interface pin pitch mm: 3.5
Blu interface amount: 1
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
LCD Signal AVDD: 10.5
Signal Interface: FPC
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 60

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 600
Dot Pitch: 0.09
Dot pitch vertical: 0.26
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 500
Colors: 262000
Display colors value 2: 16200000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Dithering
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 50
Bottom Viewing Angle: 60
Optimal Viewing Direction: 6 o'clock
Response Time: 10
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 10.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 158.4
Bezel Height: 162.5
Outline Vertical: 175.4
Outline Depth Typical: 5.9
Outline Depth Max: 6.2000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 379
Typical Weight: 379
Maximum Weight: 379

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
