5.7" Inch TFT-LCD Display

LTA057A341F
Toshiba

Home
TFT-LCD
Toshiba
LTA057A341F

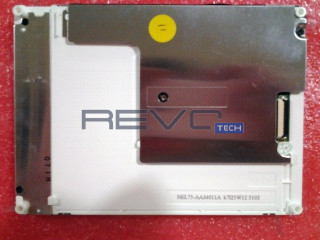

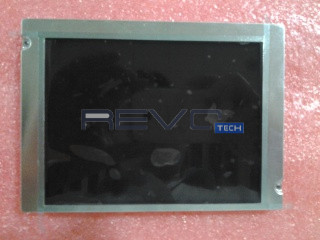

Toshiba LTA057A341F - TFT-LCD 320 x 240

Product description

LTA057A341F is a display manufactured by Toshiba. It has a resolution of 320 x 240, brightness of 400 cd/m2 and contrast of 500:1.

Available Stock

Condition: New Pulls Functionally new, pulled from non-used equipment, may have cosmetic marks that do not affect performance
Available: 700 units
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 1.36
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 6S3P
Baklight Arrangement: 3 rows
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 19.2
Backlight Voltage Typical: 19.2
Backlight Voltage Maximum: 19.2
Backlight Current Minimum (mAh): 15
Backlight Current Typical (mAh): 25
Backlight Current Maximum (mAh): 25
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: SM06B-SHLS-TF(LF)(SN)
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: CMOS
Signal Channels: 1
Signal bits: 6-bit
LCD Signal VDD: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: IRISO
Signal Interface Model: IMSA-9637S-33A-GF
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 33
Signal Pins Configuration: DRGB-33P1C6B-030A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 320 x 240
Dot Pitch: 0.12
Dot pitch vertical: 0.36
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 400
Contrast: 500
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 60
Bottom Viewing Angle: 60
Response Time: 50
Response Time: 50
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 5.7
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 86.4
Bezel Height: 90.2
Outline Vertical: 104.6
Outline Depth Max: 8.3000
Mounting: Side mounting holes (4-Φ1.6); Rear mounting Pole (4-Φ2.6); Face mounting holes (2 pcs)
Orientation: Vertical
Mounting Holes: Side mounting holes (4-Φ1.6); Rear mounting Pole (4-Φ2.6); Face mounting holes (2 pcs)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 125
Typical Weight: 125
Maximum Weight: 125

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
