5.7" Inch TFT-LCD Display

LTA057A349F
Toshiba

Home
TFT-LCD
Toshiba
LTA057A349F

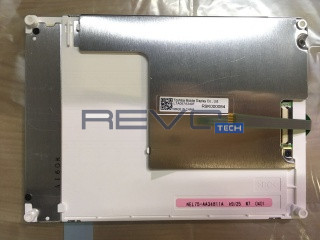

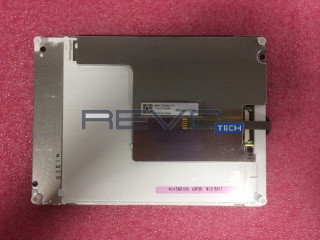

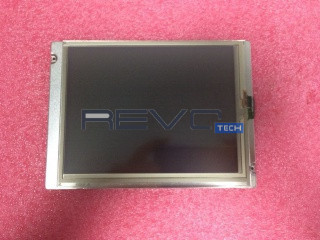

Toshiba LTA057A349F - TFT-LCD 320 x 240

Product description

LTA057A349F is a display manufactured by Toshiba. It has a resolution of 320 x 240, brightness of 320 cd/m2 and contrast of 500:1.

Available Stock

Condition: New Pulls Functionally new, pulled from non-used equipment, may have cosmetic marks that do not affect performance
Available: 800 units
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 1.36
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3 strings
Baklight Arrangement: 3 rows
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 18
Backlight Voltage Typical: 18
Backlight Voltage Maximum: 18
Backlight Current Typical (mAh): 15
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: CMOS
Signal Channels: 1
Signal bits: 6-bit
LCD Signal VDD: 3.3
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 320 x 240
Dot Pitch: 0.12
Dot pitch vertical: 0.36
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 320
Contrast: 500
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 50
Bottom Viewing Angle: 70
Response Time: 15
Response Time: 25
Chromaticity: 0.32
Chromaticity: 0.34
light uniformity: 1.43/1.67 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 5.7
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 86.4
Bezel Height: 90.2
Outline Vertical: 104.6
Outline Depth Typical: 9.5
Outline Depth Max: 10.0000
Mounting: Side mounting holes (4-Φ1.6); Rear mounting Pole (4-Φ2.6); Face mounting holes (2 pcs)
Orientation: Vertical
Mounting Holes: Side mounting holes (4-Φ1.6); Rear mounting Pole (4-Φ2.6); Face mounting holes (2 pcs)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Resistive Touchscreen Type: 4-Wire
Touchscreen Connection: Connector
Touchscreen Controller: Without touch controller

Weights specs

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
