31.5" Inch TFT-LCD Display

LTA320AP12
Samsung

Home
TFT-LCD
Samsung
LTA320AP12

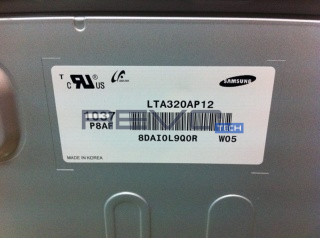

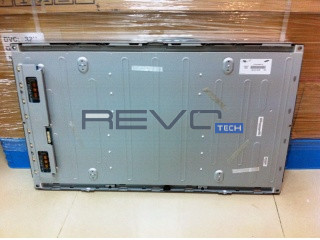

Samsung LTA320AP12 - TFT-LCD 1366 x 768

Product description

LTA320AP12 is a display manufactured by Samsung. It has a resolution of 1366 x 768, brightness of 450 cd/m2 and contrast of 4000:1.

Electrical Specs

Backlight Location: Direct
Backlight: CCFL
Backlight Lamp Quantity: 4 pcs
Baklight Arrangement: U shape
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With Inverter
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 20022WR-14B1
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 12
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS100-L30O-C23
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P1C8B-170C

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.51
Dot pitch vertical: 0.17
Glare: Antiglare
Glare: 7
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 450
Contrast: 4000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 31.5
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 392.26
Bezel Height: 399
Outline Vertical: 450
Outline Depth Max: 50.2000
Mounting: Face mounting holes; Side mounting holes; Rear mounting holes
Orientation: Vertical
Mounting Holes: Face mounting holes; Side mounting holes; Rear mounting holes

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 5500
Typical Weight: 5500
Maximum Weight: 5500

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
