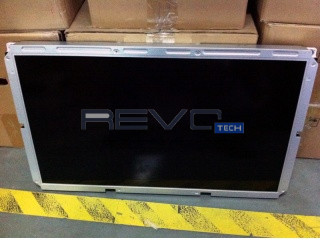

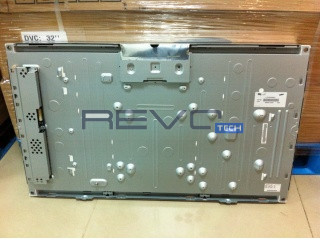

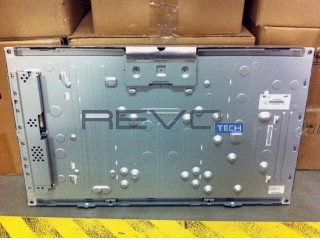

Samsung LTA320HN02-W - TFT-LCD 1920 x 1080 Full HD

Product description

LTA320HN02-W is a display manufactured by Samsung. It has a resolution of 1920 x 1080, brightness of 430 cd/m2 and contrast of 5000:1.

Electrical Specs

Backlight Location: Direct
Backlight: CCFL
Backlight Lamp Quantity: 4 pcs
Baklight Arrangement: U shape
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Current Minimum (mAh): 11
Backlight Current Typical (mAh): 12
Backlight Current Maximum (mAh): 13
Backlight Driver Board: With Inverter
Minimum Voltage Driver Consumption: 21.6
Maximum Voltage Driver Consumption: 26.4
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 20022WR-14AML
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 10-bit
VCC: 12
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS050-C51B-C38
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51
Signal Pins Configuration: LVDS-51P2C10B-010C

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.12
Dot pitch vertical: 0.36
Glare: Antiglare
Glare: 5
Hardness: Hard coating (2H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 430
Contrast: 5000
Gray Scale: 8-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 12
Response Time: 8
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 31.5
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 392.85
Bezel Height: 398.4
Outline Vertical: 450
Outline Depth Max: 57.2000
Mounting: Face mounting holes; Side mounting holes; Rear mounting holes
Orientation: Vertical
Mounting Holes: Face mounting holes; Side mounting holes; Rear mounting holes

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 6000
Typical Weight: 6000
Maximum Weight: 6000

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 65
