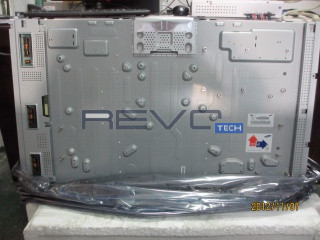

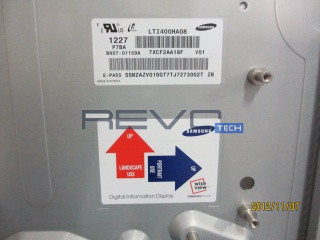

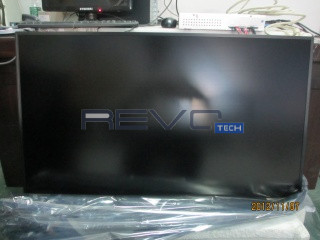

Samsung LTI400HA08-V - TFT-LCD 1920 x 1080 Full HD

Product description

LTI400HA08-V is a display manufactured by Samsung. It has a resolution of 1920 x 1080, brightness of 700 cd/m2 and contrast of 3000:1.

Electrical Specs

Backlight Location: Direct
Backlight: CCFL
Backlight Lamp Quantity: 12 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 825
Backlight Voltage Typical: 825
Backlight Voltage Maximum: 825
Backlight Current Minimum (mAh): 8
Backlight Current Typical (mAh): 14
Backlight Current Maximum (mAh): 16
Backlight Driver Board: With Inverter
Minimum Voltage Driver Consumption: 22
Maximum Voltage Driver Consumption: 26
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: S14B-PHA-SM3-TB
Blu interface pin pitch mm: 2
Blu interface amount: 1
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-RE51S-HF
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51
Signal Pins Configuration: LVDS-51P2C8B-030B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.15
Dot pitch vertical: 0.46
Glare: Antiglare
Glare: 44
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 700
Contrast: 3000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 40
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 498.15
Bezel Height: 504.2
Outline Vertical: 524.2
Outline Depth Typical: 41
Outline Depth Max: 61.6000
Orientation: Vertical / Horizontal
Bezel Thickness: 26.1

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 13000
Typical Weight: 13000
Maximum Weight: 13000

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 65
