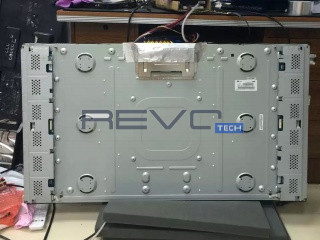

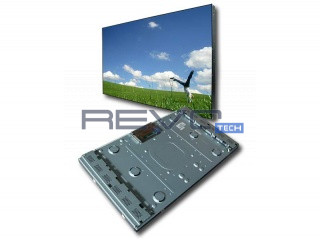

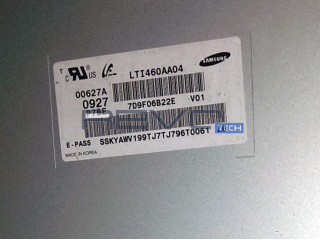

Samsung LTI460AA04 - TFT-LCD 1366 x 768

Product description

LTI460AA04 is a display manufactured by Samsung. It has a resolution of 1366 x 768, brightness of 700 cd/m2 and contrast of 3000:1.

Electrical Specs

Backlight Location: Direct
Backlight: CCFL
Backlight Lamp Quantity: 24 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 1580
Backlight Voltage Typical: 1580
Backlight Voltage Maximum: 1580
Backlight Current Minimum (mAh): 4
Backlight Current Typical (mAh): 6.5
Backlight Current Maximum (mAh): 7
Backlight Driver Board: With Inverter
Minimum Voltage Driver Consumption: 22
Maximum Voltage Driver Consumption: 26
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: S14B-PHA-SM3-TB
Blu interface pin pitch mm: 2
Blu interface amount: 2
Blu interface pin amount: 14
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 12
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-E30S
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P1C8B-170C

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.25
Dot pitch vertical: 0.75
Glare: Antiglare
Glare: 44
Hardness: Hard coating (3H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 700
Contrast: 3000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 10
Response Time: 6
Chromaticity: 0.28
Chromaticity: 0.29
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 46
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 572.54
Bezel Height: 572.74
Outline Vertical: 579.84
Outline Depth Typical: 37.53
Outline Depth Max: 59.4300
Orientation: Vertical / Horizontal
Bezel Thickness: 7.3

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 16000
Typical Weight: 16000
Maximum Weight: 16000

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
