18.5" Inch TFT-LCD Display

LTM185AT05
Samsung

Home
TFT-LCD
Samsung
LTM185AT05

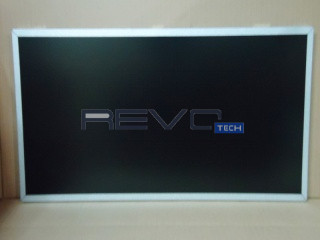

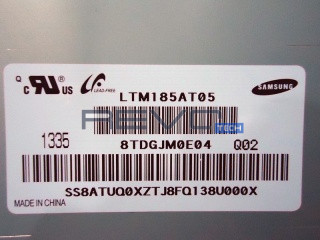

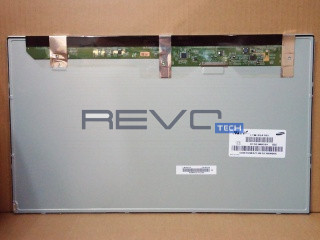

Samsung LTM185AT05 - TFT-LCD 1366 x 768

Product description

LTM185AT05 is a display manufactured by Samsung. It has a resolution of 1366 x 768, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Backlight Location: Edge (Right side)
Backlight: WLED
Backlight Lamp Quantity: 7S3P
Baklight Arrangement: 3 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 22.4
Backlight Voltage Typical: 22.4
Backlight Voltage Maximum: 22.4
Backlight Current Typical (mAh): 40
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: molex
Backlight Interface Model: 104086-0410
Blu interface pin pitch mm: 1.25
Blu interface amount: 1
Blu interface pin amount: 4
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 5
Signal Interface: Connector
Signal Interface Manufacturer: P-TWO
Signal Interface Model: 196260-30041
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P1C8B-170A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.1
Dot pitch vertical: 0.3
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 18.5
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 230.4
Bezel Height: 234.4
Outline Vertical: 254.6
Outline Depth Max: 10.6000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1500
Typical Weight: 1500
Maximum Weight: 1500

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -25
Storage Temperature Maximum: 60
