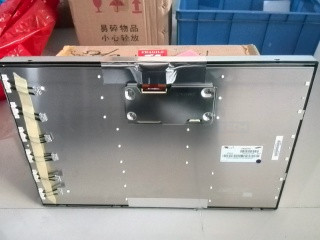

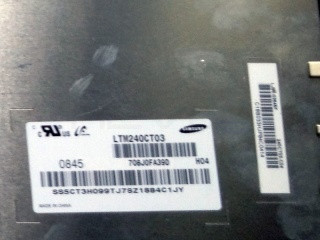

24" Inch TFT-LCD Display
LTM240CT03
Samsung

Product description

LTM240CT03 is a display manufactured by Samsung. It has a resolution of 1920 x 1200, brightness of 400 cd/m2 and contrast of 1000:1.

Electrical Specs

Backlight Location: Direct
Backlight: CCFL
Backlight Lamp Quantity: 6 pcs
Baklight Arrangement: U shape
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 1780
Backlight Voltage Typical: 1780
Backlight Voltage Maximum: 1780
Backlight Current Minimum (mAh): 5.5
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 7
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 20015HS-04LB
Blu interface pin pitch mm: 4
Blu interface amount: 6
Blu interface pin amount: 4
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS100-L30O-C23
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-150A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1200
Dot Pitch: 0.09
Dot pitch vertical: 0.27
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: Yes
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 400
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 92
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 24
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 324
Bezel Height: 328
Outline Vertical: 352
Outline Depth Typical: 29
Outline Depth Max: 36.3000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 3400
Typical Weight: 3400
Maximum Weight: 3400

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -25
Storage Temperature Maximum: 60
