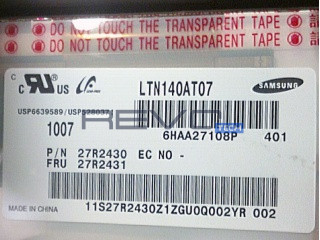

Samsung LTN140AT07-401 - TFT-LCD 1366 x 768

Product description

LTN140AT07-401 is a display manufactured by Samsung. It has a resolution of 1366 x 768, brightness of 220 cd/m2 and contrast of 300:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 7S6P
Baklight Arrangement: 6 rows
Lamp Lifetime (Time to Half Brightness): 12000
Backlight Voltage Minimum: 22.4
Backlight Voltage Typical: 22.4
Backlight Voltage Maximum: 22.4
Backlight Current Minimum (mAh): -1
Backlight Current Typical (mAh): 20
Backlight Current Maximum (mAh): 21
Maximum Backlight Consumption: 3.28
Typical Backlight Consumption: 3.09
Backlight Driver Board: With LED Driver
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Typical LCD Power Consumption: 1.65
Signal Interface: Connector
Signal Interface Manufacturer: I-PEX
Signal Interface Model: 20455-040E-02S
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40
Signal Pins Configuration: LVDS-40P1C6B-053A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.08
Dot pitch vertical: 0.23
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 220
Contrast: 300
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 60
Color Gamut Type: NTSC
Left Viewing Angle: 45
Top Viewing Angle: 45
Right Viewing Angle: 15
Bottom Viewing Angle: 35
Optimal Viewing Direction: 6 o'clock
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.70(Max.)
(13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 14
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 173.95
Outline Vertical: 192
Outline Depth Max: 5.2000
Mounting: Side mounting holes (6-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (6-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 350
Typical Weight: 350
Maximum Weight: 350

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
