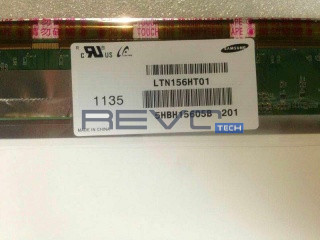

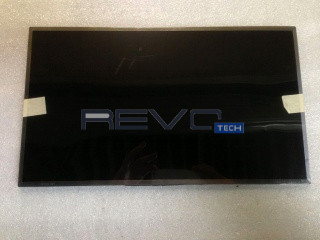

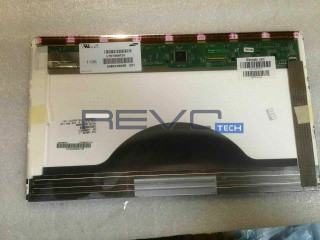

Samsung LTN156HT01-201 - TFT-LCD 1920 x 1080 Full HD

Product description

LTN156HT01-201 is a display manufactured by Samsung. It has a resolution of 1920 x 1080, brightness of 300 cd/m2 and contrast of 500:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 8S8P
Baklight Arrangement: 8 rows
Backlight Voltage Minimum: 24
Backlight Voltage Typical: 24
Backlight Voltage Maximum: 24
Backlight Current Minimum (mAh): -5
Backlight Current Typical (mAh): 24
Backlight Current Maximum (mAh): 29
Maximum Backlight Consumption: 6.5
Typical Backlight Consumption: 5.9
Backlight Driver Board: With LED Driver
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 2
Signal bits: 6-bit
VCC: 3.3
Typical LCD Power Consumption: 2.31
Signal Interface: Connector
Signal Interface Manufacturer: I-PEX
Signal Interface Model: 20455-040E-02
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40
Signal Pins Configuration: LVDS-40P2C6B-010A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.06
Dot pitch vertical: 0.18
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 300
Contrast: 500
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 60
Color Gamut Type: NTSC
Left Viewing Angle: 50
Top Viewing Angle: 50
Right Viewing Angle: 40
Bottom Viewing Angle: 40
Optimal Viewing Direction: 6 o'clock
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.70 (Max.)
(13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 15.6
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 193.59
Bezel Height: 197.1
Outline Vertical: 209.5
Outline Depth Max: 5.8000
Mounting: Side mounting holes (8-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (8-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 510
Typical Weight: 510
Maximum Weight: 510

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
