19" Inch TFT-LCD Display

LTN190W1-L01
Samsung

Home
TFT-LCD
Samsung
LTN190W1-L01

19" Inch TFT-LCD Display
LTN190W1-L01
Samsung

Product description

LTN190W1-L01 is a display manufactured by Samsung. It has a resolution of 1680 x 1050, brightness of 280 cd/m2 and contrast of 600:1.

Electrical Specs

Backlight Location: Edge (Bottom side)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 25000
Backlight Voltage Minimum: 800
Backlight Voltage Typical: 800
Backlight Voltage Maximum: 800
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 7
Typical Backlight Consumption: 4.8
Backlight Driver Board: None

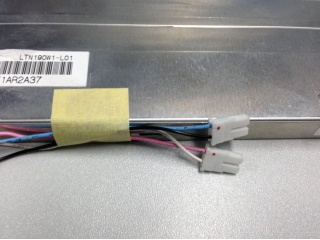

Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHSR-02VS-1
Blu interface pin pitch mm: 3.5
Blu interface amount: 2
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5

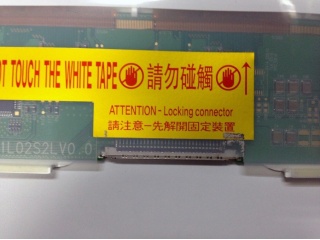

Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-XB30SRL-HF11S
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1680 x 1050
Dot Pitch: 0.08
Dot pitch vertical: 0.24
Glare: Glare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 280
Contrast: 600
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 75
Bottom Viewing Angle: 60
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 2.20 (Max.)
(13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 19
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 255.15
Bezel Height: 260
Outline Vertical: 273.5
Outline Depth Typical: 11.1
Outline Depth Max: 11.5000
Mounting: Side mounting holes (8-M2) on left right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (8-M2) on left right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1375
Typical Weight: 1375
Maximum Weight: 1375

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
