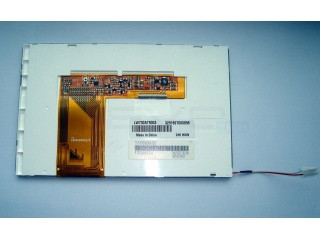

7" Inch TFT-LCD Display

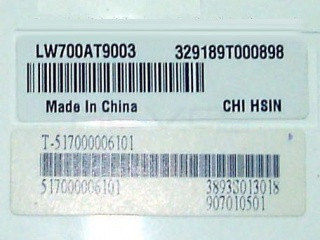

LW700AT9003
Innolux

Product description

LW700AT9003 is a display manufactured by Innolux. It has a resolution of 800 x 480, brightness of 350 cd/m2 and contrast of 400:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3S8P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 10000
Backlight Voltage Minimum: 9.9
Backlight Voltage Typical: 9.9
Backlight Voltage Maximum: 9.9
Backlight Current Typical (mAh): 160
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHSR-02VS-1
Blu interface pin pitch mm: 3.5
Blu interface amount: 1
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: TTL
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Typical LCD Power Consumption: 0.5
Signal Interface: FPC
Signal Interface Connectors: 1
Signal Pins Quantity: 40
Signal Pins Configuration: DRGB-40P1C6B-010A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.19
Glare: Antiglare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 350
Contrast: 400
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 60
Bottom Viewing Angle: 60
Optimal Viewing Direction: 6 o'clock
Response Time: 5
Response Time: 11
Chromaticity: 0.3
Chromaticity: 0.33
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 91.44
Bezel Height: 94.3
Outline Vertical: 104
Outline Depth Typical: 5.2
Outline Depth Max: 5.7000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 123
Typical Weight: 123
Maximum Weight: 123

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
