8.5" Inch TFT-LCD Display

LW850AT9301
Innolux

Home
TFT-LCD
Innolux
LW850AT9301

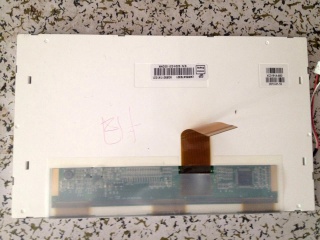

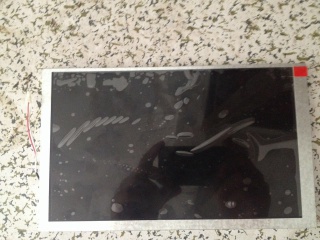

8.5" Inch TFT-LCD Display

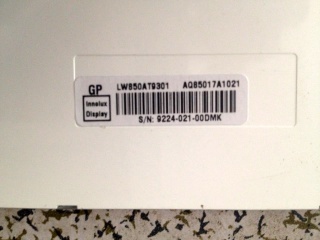

LW850AT9301
Innolux

Product description

LW850AT9301 is a display manufactured by Innolux. It has a resolution of 800 x 480, brightness of 270 cd/m2 and contrast of 300:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 15000
Backlight Voltage Minimum: 13.2
Backlight Voltage Typical: 13.2
Backlight Voltage Maximum: 13.2
Backlight Current Minimum (mAh): 180
Backlight Current Typical (mAh): 225
Backlight Current Maximum (mAh): 225
Maximum Backlight Consumption: 14
Typical Backlight Consumption: 13.2
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-03VS-1
Blu interface pin pitch mm: 4
Blu interface amount: 1
Blu interface pin amount: 3
Blu interface pin configuration: 0
Signal type: Parallel RGB
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Signal Interface: FPC
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 480
Dot Pitch: 0.08
Dot pitch vertical: 0.23
Glare: Antiglare
Glare: 25
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 270
Contrast: 300
Colors: 16200000
Gray Scale: 6-bit + FRC
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 70
Bottom Viewing Angle: 60
Optimal Viewing Direction: 12 o'clock
Response Time: 15
Response Time: 35
Chromaticity: 0.3
Chromaticity: 0.32
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 8.5
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 110.88
Bezel Height: 114.08
Outline Vertical: 124.48
Outline Depth Typical: 6.7
Outline Depth Max: 8.5000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 243.5
Typical Weight: 243.5
Maximum Weight: 243.5

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
