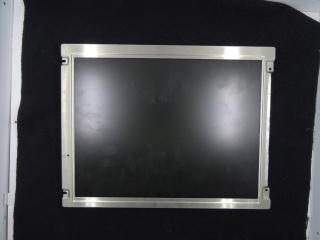

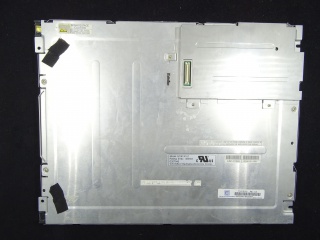

14.1" Inch TFT-LCD Display

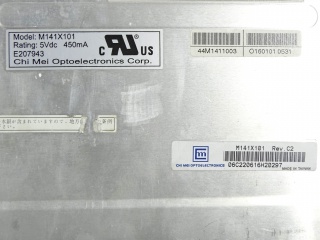

M141X101
Innolux

Product description

M141X101 is a display manufactured by Innolux. It has a resolution of 1024 x 768, brightness of 200 cd/m2 and contrast of 200:1.

Electrical Specs

Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 560
Backlight Voltage Typical: 630
Backlight Voltage Maximum: 700
Backlight Current Minimum (mAh): 1
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 8
Backlight Operation Frequency: 50
Typical Backlight Consumption: 7.6
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-03VS-1
Blu interface pin pitch mm: 4
Blu interface amount: 2
Blu interface pin amount: 3
Blu interface pin configuration: 0
Signal type: TTL
Signal Channels: 2
Signal bits: 6-bit
VCC: 5
Signal Interface: Connector
Signal Interface Manufacturer: molex
Signal Interface Model: 52760-0600
LCD Signal Interface Pins Pitch (mm): 0.64
Signal Interface Connectors: 1
Signal Pins Quantity: 60
Signal Pins Configuration: DRGB-60P2C6B-010B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.09
Dot pitch vertical: 0.28
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 200
Contrast: 200
Colors: 262000
Gray Scale: 6-bit
Left Viewing Angle: 50
Top Viewing Angle: 50
Right Viewing Angle: 15
Bottom Viewing Angle: 35
Optimal Viewing Direction: 6 o'clock
Response Time: 15
Response Time: 35
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.40/1.60 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 14.1
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 214.27
Bezel Height: 218.4
Outline Vertical: 255
Outline Depth Typical: 17
Outline Depth Max: 17.5000
Mounting: Face mounting holes (4 pcs)
Orientation: Vertical
Mounting Holes: Face mounting holes (4 pcs)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1275
Typical Weight: 1275
Maximum Weight: 1275

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
