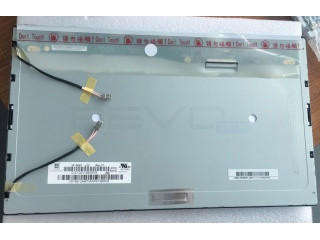

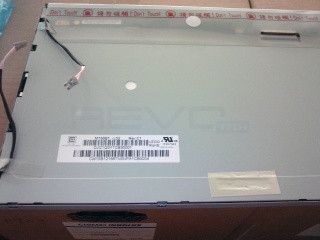

Innolux M156B1-L02 - TFT-LCD 1366 x 768

Product description

M156B1-L02 is a display manufactured by Innolux. It has a resolution of 1366 x 768, brightness of 250 cd/m2 and contrast of 500:1.

Electrical Specs

Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 585
Backlight Voltage Typical: 650
Backlight Voltage Maximum: 715
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 7
Backlight Current Maximum (mAh): 8
Backlight Operation Frequency: 55
Typical Backlight Consumption: 9.1
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 5
Typical LCD Power Consumption: 2.15
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.08
Dot pitch vertical: 0.25
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 500
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 65
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 2
Response Time: 6
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.40/1.50 (Typ./Max.)
(13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 15.6
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 193.54
Bezel Height: 196.8
Outline Vertical: 215.9
Outline Depth Typical: 14.3
Outline Depth Max: 14.8000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1300
Typical Weight: 1300
Maximum Weight: 1300

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
