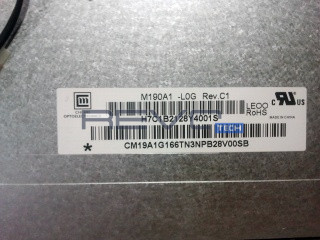

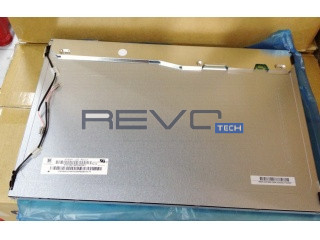

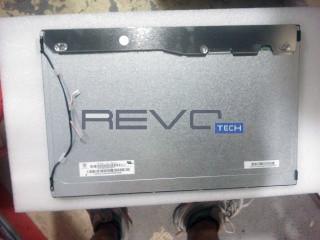

Innolux M190A1-L0G - TFT-LCD 1440 x 900

Product description

M190A1-L0G is a display manufactured by Innolux. It has a resolution of 1440 x 900, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 13.95
Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 40000
Backlight Voltage Minimum: 775
Backlight Voltage Typical: 775
Backlight Voltage Maximum: 775
Backlight Current Minimum (mAh): 2
Backlight Current Typical (mAh): 7
Backlight Current Maximum (mAh): 7.5
Typical Backlight Consumption: 10.85
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 4
Typical LCD Power Consumption: 3.1
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1440 x 900
Dot Pitch: 0.09
Dot pitch vertical: 0.28
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 1.5
Response Time: 3.5
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.33 (Typ./Max.)
(13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 19
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 255.15
Bezel Height: 259.15
Outline Vertical: 278
Outline Depth Max: 17.0000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2075
Typical Weight: 2075
Maximum Weight: 2075

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
