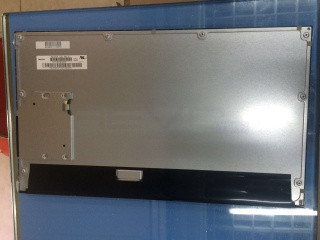

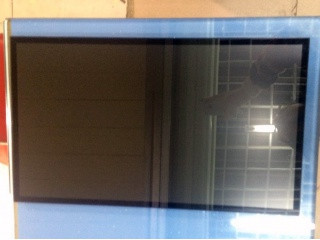

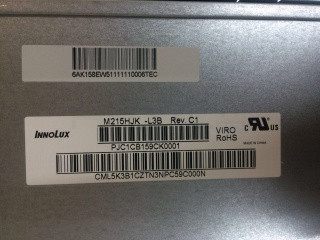

Innolux M215HJK-L3B - TFT-LCD 1920 x 1080 Full HD

Product description

M215HJK-L3B is a display manufactured by Innolux. It has a resolution of 1920 x 1080, brightness of 250 cd/m2 and contrast of 3000:1.

Electrical Specs

Total Power Consumption (Watts): 16.65
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 40000
Backlight Voltage Minimum: 29
Backlight Voltage Typical: 32
Backlight Voltage Maximum: 35
Backlight Current Minimum (mAh): 80
Backlight Current Typical (mAh): 85
Backlight Current Maximum (mAh): 85
Maximum Backlight Consumption: 11.52
Typical Backlight Consumption: 10.24
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: FCN
Backlight Interface Model: WM13-406-063N
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 5.6
Typical LCD Power Consumption: 4.8
Signal Interface: Connector
Signal Interface Manufacturer: P-TWO
Signal Interface Model: 187098-30091
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.08
Dot pitch vertical: 0.25
Hardness: Hard coating (6H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 3000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 20
Response Time: 5
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.43 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 21.5
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 267.77
Outline Vertical: 291.24
Outline Depth Typical: 16.11
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Simultaneous Touch Points: 10
Touchscreen Signal Type: I²C & USB
Touchscreen Connection: Connector
Touchscreen Controller: With touch controller

Weights specs

Minimum Weight: 2550
Typical Weight: 2550
Maximum Weight: 2550

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
