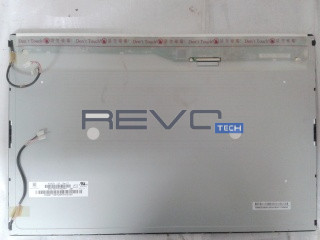

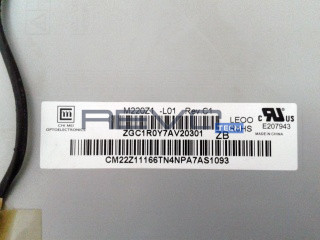

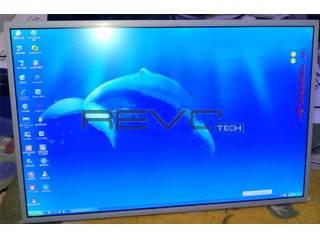

Innolux M220Z1-L01 - TFT-LCD 1680 x 1050

Product description

M220Z1-L01 is a display manufactured by Innolux. It has a resolution of 1680 x 1050, brightness of 300 cd/m2 and contrast of 800:1.

Electrical Specs

Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 4 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 738
Backlight Voltage Typical: 820
Backlight Voltage Maximum: 902
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 7
Backlight Current Maximum (mAh): 8
Typical Backlight Consumption: 22.96
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHSR-02VS-1
Blu interface pin pitch mm: 3.5
Blu interface amount: 4
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-XB30SSL-HF15
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160D

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1680 x 1050
Dot Pitch: 0.09
Dot pitch vertical: 0.28
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 300
Contrast: 800
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 70
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 2
Response Time: 3
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.30/1.42 (Typ./Max.)
(13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 22
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 296.1
Bezel Height: 300.1
Outline Vertical: 320.1
Outline Depth Typical: 16.5
Outline Depth Max: 17.0000
Mounting: Side mounting holes (8 pcs)
Orientation: Vertical
Mounting Holes: Side mounting holes (8 pcs)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2800
Typical Weight: 2800
Maximum Weight: 2800

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
