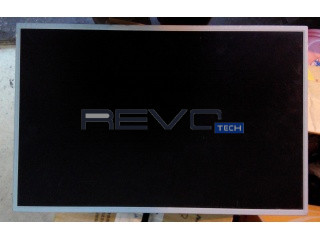

Innolux M220Z1-L09 - TFT-LCD 1680 x 1050

Product description

M220Z1-L09 is a display manufactured by Innolux. It has a resolution of 1680 x 1050, brightness of 300 cd/m2 and contrast of 1000:1.

Electrical Specs

Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 4 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 765
Backlight Voltage Typical: 850
Backlight Voltage Maximum: 935
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 7
Backlight Current Maximum (mAh): 8
Typical Backlight Consumption: 22.96
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: YEONHO
Backlight Interface Model: 35001HS-02L
Blu interface pin pitch mm: 3.5
Blu interface amount: 4
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 4
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 8.5
Typical LCD Power Consumption: 6.25
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-RE51S-HF
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 51

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1680 x 1050
Dot Pitch: 0.09
Dot pitch vertical: 0.28
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 300
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 1.3
Response Time: 3.7
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.30/1.42 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 22
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 296.1
Bezel Height: 300.1
Outline Vertical: 320.1
Outline Depth Typical: 18.2
Outline Depth Max: 18.7000
Mounting: Side mounting holes (8-M3)
Orientation: Vertical
Mounting Holes: Side mounting holes (8-M3)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2550
Typical Weight: 2550
Maximum Weight: 2550

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
