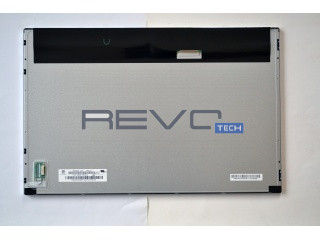

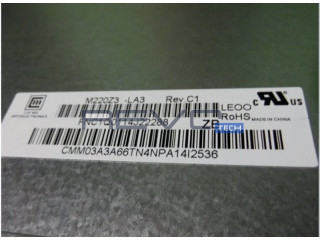

Innolux M220Z3-LA3 - TFT-LCD 1680 x 1050

Product description

M220Z3-LA3 is a display manufactured by Innolux. It has a resolution of 1680 x 1050, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 14.6
Backlight Location: Edge (Bottom side)
Backlight: WLED
Backlight Lamp Quantity: 14S8P
Baklight Arrangement: 8 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 39.2
Backlight Voltage Typical: 39.2
Backlight Voltage Maximum: 39.2
Backlight Current Minimum (mAh): 25
Backlight Current Typical (mAh): 28
Backlight Current Maximum (mAh): 28
Maximum Backlight Consumption: 9.6
Typical Backlight Consumption: 9
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: E&T
Backlight Interface Model: 7083K-F12N-00L
Blu interface pin pitch mm: 0.5
Blu interface amount: 1
Blu interface pin amount: 12
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 6.1
Typical LCD Power Consumption: 3.25
Signal Interface: Connector
Signal Interface Manufacturer: STARCONN
Signal Interface Model: 093G30-B2001A-G4
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1680 x 1050
Dot Pitch: 0.09
Dot pitch vertical: 0.28
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Optimal Viewing Direction: 6 o'clock
Response Time: 1.3
Response Time: 3.7
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.43 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 22
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 296.1
Bezel Height: 300.1
Outline Vertical: 320.1
Outline Depth Max: 11.5000
Mounting: Side mounting holes (8-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (8-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2245
Typical Weight: 2245
Maximum Weight: 2245

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
