22" Inch TFT-LCD Display

M220ZGE-L20
Innolux

Home
TFT-LCD
Innolux
M220ZGE-L20

22" Inch TFT-LCD Display

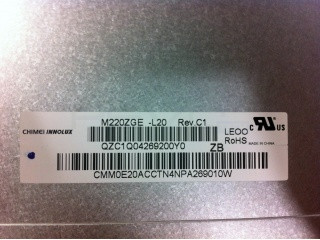

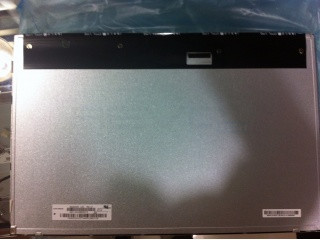

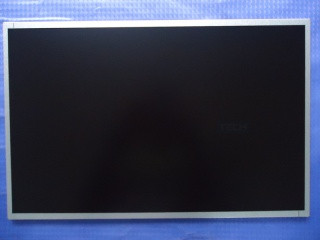

M220ZGE-L20
Innolux

Product description

M220ZGE-L20 is a display manufactured by Innolux. It has a resolution of 1680 x 1050, brightness of 250 cd/m2 and contrast of 1000:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 300 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 15.76
Backlight Location: Edge (Right side)
Backlight: WLED
Backlight Lamp Quantity: 12S4P
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 40000
Backlight Voltage Minimum: 37.2
Backlight Voltage Typical: 37.2
Backlight Voltage Maximum: 37.2
Backlight Current Minimum (mAh): 65
Backlight Current Typical (mAh): 69
Backlight Current Maximum (mAh): 69
Maximum Backlight Consumption: 11.26
Typical Backlight Consumption: 9.67
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: FCN
Backlight Interface Model: WM13-406-063N
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 4.5
Typical LCD Power Consumption: 3.25
Signal Interface: Connector
Signal Interface Manufacturer: FOXCONN
Signal Interface Model: GS23302-0311R-7H
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1680 x 1050
Dot Pitch: 0.09
Dot pitch vertical: 0.28
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 1.3
Response Time: 3.7
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 22
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 296.1
Bezel Height: 300.1
Outline Vertical: 320.1
Outline Depth Typical: 11
Outline Depth Max: 11.5000
Mounting: Side mounting holes (4-M3) on up and down side
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on up and down side

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2175
Typical Weight: 2175
Maximum Weight: 2175

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
