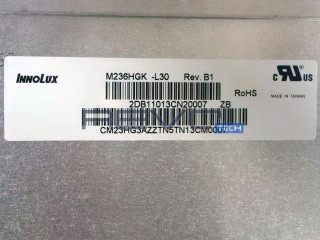

Innolux M236HGK-L30 - TFT-LCD 1920 x 1080 Full HD

Product description

M236HGK-L30 is a display manufactured by Innolux. It has a resolution of 1920 x 1080, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 20.9
Backlight Location: Edge (Left side)
Backlight: WLED
Backlight Lamp Quantity: 4 strings
Baklight Arrangement: 4 rows
Backlight Voltage Minimum: 30.5
Backlight Voltage Typical: 30.5
Backlight Voltage Maximum: 30.5
Backlight Current Minimum (mAh): -6.6
Backlight Current Typical (mAh): 110
Backlight Current Maximum (mAh): 116.6
Maximum Backlight Consumption: 14.6
Typical Backlight Consumption: 13.5
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: FCN
Backlight Interface Model: WM13-406-063N
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 8.9
Typical LCD Power Consumption: 7.4
Signal Interface: Connector
Signal Interface Manufacturer: P-TWO
Signal Interface Model: 187098-30091
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.09
Dot pitch vertical: 0.27
Hardness: Hard coating (6H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Chromaticity: 0.31
Chromaticity: 0.33
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 23.6
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 293.22
Bezel Height: 307.02
Outline Vertical: 325
Outline Depth Typical: 9.9
Outline Depth Max: 16.1300
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Simultaneous Touch Points: 10
Touchscreen Signal Type: I²C & USB
Touchscreen Connection: Connector
Touchscreen Controller: With touch controller

Weights specs

Minimum Weight: 2600
Typical Weight: 2600
Maximum Weight: 2600

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
