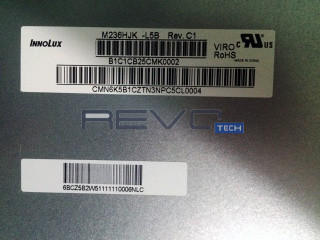

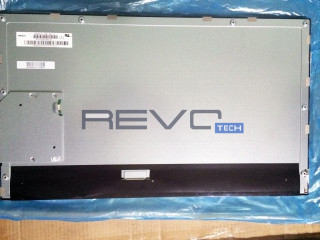

Innolux M236HJK-L5B - TFT-LCD 1920 x 1080 Full HD

Product description

M236HJK-L5B is a display manufactured by Innolux. It has a resolution of 1920 x 1080, brightness of 250 cd/m2 and contrast of 3000:1.

Electrical Specs

Total Power Consumption (Watts): 14.23
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 40000
Backlight Voltage Minimum: 29
Backlight Voltage Typical: 29
Backlight Voltage Maximum: 29
Backlight Current Minimum (mAh): 70.5
Backlight Current Typical (mAh): 75
Backlight Current Maximum (mAh): 79.5
Maximum Backlight Consumption: 10.5
Typical Backlight Consumption: 9.45
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 5.39
Typical LCD Power Consumption: 4.15
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.09
Dot pitch vertical: 0.27
Hardness: Hard coating (6H)
Reflection: No
Display Type: VA
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 3000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 20
Response Time: 5
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33/1.39 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 23.6
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 293.22
Outline Vertical: 318.9
Outline Depth Typical: 16.41
Outline Depth Max: 16.9100
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Simultaneous Touch Points: 10
Touchscreen Signal Type: I²C & USB
Touchscreen Connection: Connector
Touchscreen Controller: With touch controller

Weights specs

Minimum Weight: 3080
Typical Weight: 3080
Maximum Weight: 3080

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
