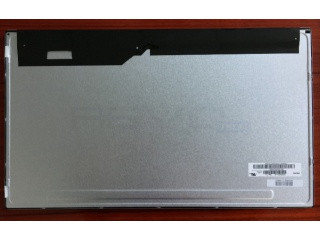

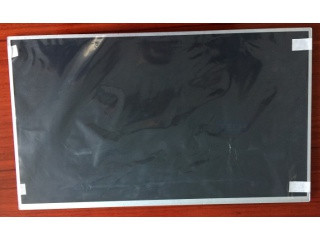

23.8" Inch TFT-LCD Display

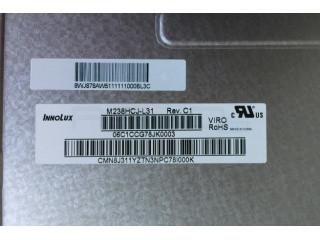

M238HCJ-L31
Innolux

Home
TFT-LCD
Innolux
M238HCJ-L31

23.8" Inch TFT-LCD Display
M238HCJ-L31
Innolux

Product description

M238HCJ-L31 is a display manufactured by Innolux. It has a resolution of 1920 x 1080, brightness of 250 cd/m2 and contrast of 1000:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 500 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 17.17
Backlight Location: Edge
Backlight: WLED
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 44
Backlight Voltage Typical: 44
Backlight Voltage Maximum: 44
Backlight Current Minimum (mAh): 55
Backlight Current Typical (mAh): 58
Backlight Current Maximum (mAh): 58
Maximum Backlight Consumption: 13.1
Typical Backlight Consumption: 11.1
Backlight Driver Board: None
Backlight Connection: via Connector
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 4.1
Typical LCD Power Consumption: 3.5
Signal Interface: Connector
Signal Interface Manufacturer: FOXCONN
Signal Interface Model: GS23301-0321R-7H
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.09
Dot pitch vertical: 0.27
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 8
Response Time: 7
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.33 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 23.8
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 296.46
Bezel Height: 299.6
Outline Vertical: 317.4
Outline Depth Typical: 11.1
Outline Depth Max: 11.6000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2270
Typical Weight: 2270
Maximum Weight: 2270

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
