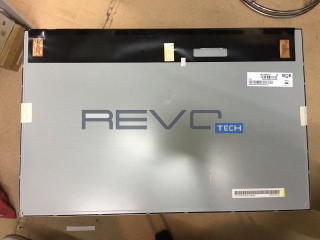

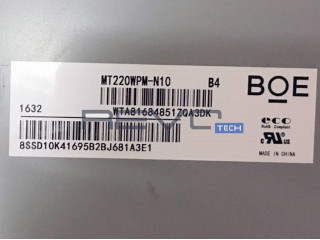

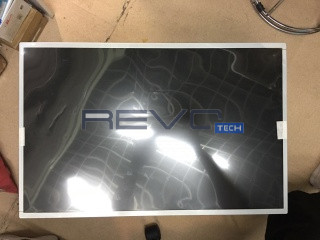

BOE MT220WPM-N10 - TFT-LCD 1680 x 1050

Product description

MT220WPM-N10 is a display manufactured by BOE. It has a resolution of 1680 x 1050, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 12.75
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3 strings
Baklight Arrangement: 3 rows
Lamp Lifetime (Time to Half Brightness): 40000
Backlight Voltage Minimum: 29
Backlight Voltage Typical: 29
Backlight Voltage Maximum: 29
Backlight Current Typical (mAh): 85
Maximum Backlight Consumption: 8.42
Typical Backlight Consumption: 7.56
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: E&T
Backlight Interface Model: 3707K-S06N-00X
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Maximum LCD Power Consumption: 5.8
Typical LCD Power Consumption: 5.1
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS100-L30O-C23
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1680 x 1050
Dot Pitch: 0.09
Dot pitch vertical: 0.28
Glare: Antiglare
Glare: 25
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Optimal Viewing Direction: 6 o'clock
Response Time: 1.5
Response Time: 3.5
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.33 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 22
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 296.1
Bezel Height: 300.1
Outline Vertical: 320.1
Outline Depth Typical: 10.2
Outline Depth Max: 10.7000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1830
Typical Weight: 1830
Maximum Weight: 1830

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -25
Storage Temperature Maximum: 60
