23.6" Inch TFT-LCD Display

MV236WHM-N10
BOE

Home
TFT-LCD
BOE
MV236WHM-N10

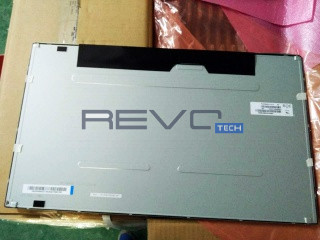

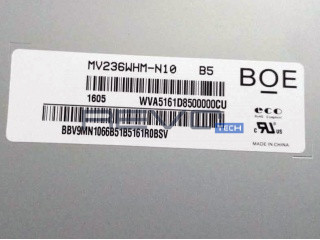

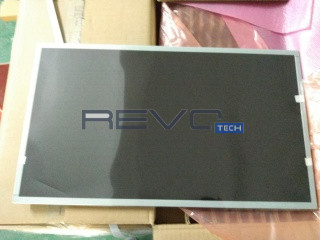

BOE MV236WHM-N10 - TFT-LCD 1366 x 768

Product description

MV236WHM-N10 is a display manufactured by BOE. It has a resolution of 1366 x 768, brightness of 250 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 17.75
Backlight Location: Edge (Right side)
Backlight: WLED
Backlight Lamp Quantity: 14S2P
Baklight Arrangement: 2 rows
Lamp Lifetime (Time to Half Brightness): 30000
Backlight Voltage Minimum: 43.4
Backlight Voltage Typical: 43.4
Backlight Voltage Maximum: 43.4
Backlight Current Minimum (mAh): 165
Backlight Current Typical (mAh): 170
Backlight Current Maximum (mAh): 170
Maximum Backlight Consumption: 15.7
Typical Backlight Consumption: 14.75
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: E&T
Backlight Interface Model: 3708K-Q06N-00L
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 12
Maximum LCD Power Consumption: 7.1
Typical LCD Power Consumption: 3
Signal Interface: Connector
Signal Interface Manufacturer: UJU
Signal Interface Model: IS100-L30B-C23
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.13
Dot pitch vertical: 0.38
Glare: Antiglare
Glare: 1
Hardness: Hard coating (3H)
Reflection: No
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 74
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Chromaticity: 0.29
Chromaticity: 0.29
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 23.6
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 293.18
Bezel Height: 297.2
Outline Vertical: 320.5
Outline Depth Typical: 11.4
Mounting: Side mounting holes (4 pcs) on up, down bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4 pcs) on up, down bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 2300
Typical Weight: 2300
Maximum Weight: 2300

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
