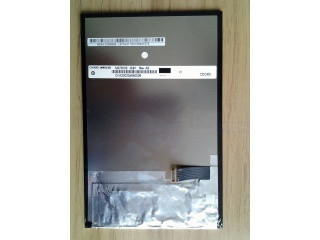

7" Inch TFT-LCD Display

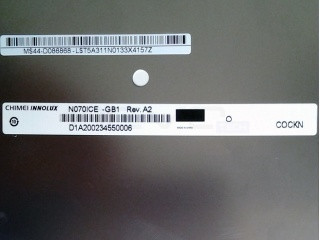

N070ICE-GB1
Innolux

Product description

N070ICE-GB1 is a display manufactured by Innolux. It has a resolution of 800 x 1280, brightness of 300 cd/m2 and contrast of 1000:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3S6P
Baklight Arrangement: 6 rows
Lamp Lifetime (Time to Half Brightness): 12000
Backlight Voltage Minimum: 8.4
Backlight Voltage Typical: 8.4
Backlight Voltage Maximum: 8.4
Backlight Current Typical (mAh): 114
Maximum Backlight Consumption: 1.13
Typical Backlight Consumption: 1.03
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: MIPI
Signal Channels: 4
VCC: 1.8
LCD Signal VDD: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: Panasonic
Signal Interface Model: AXT636124
LCD Signal Interface Pins Pitch (mm): 0.4
Signal Interface Connectors: 1
Signal Pins Quantity: 36

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 1280
Dot Pitch: 0.04
Dot pitch vertical: 0.12
Glare: Glare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 300
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 61
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 14
Response Time: 11
Chromaticity: 0.31
Chromaticity: 0.34
light uniformity: 1.43 (Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 10 x 16
Shape: Flat Rectangle
Vertical Active Area: 150.72
Bezel Height: 153.82
Outline Vertical: 163.27
Outline Depth Max: 2.4000
Mounting: Without
Orientation: Horizontal
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 90
Typical Weight: 90
Maximum Weight: 90

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 60
Storage Temperature Minumum: -20
Storage Temperature Maximum: 70
