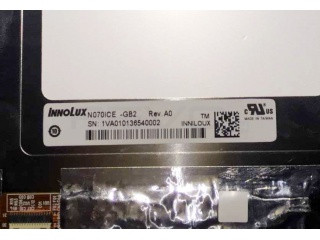

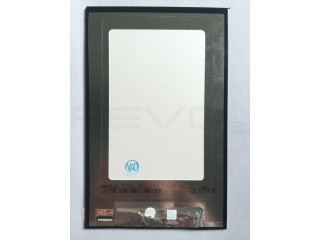

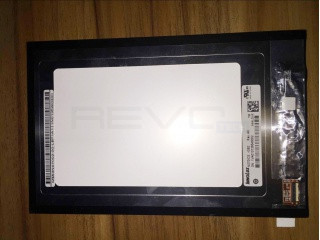

Innolux N070ICE-GB2 - TFT-LCD 800 x 1280

Product description

N070ICE-GB2 is a display manufactured by Innolux. It has a resolution of 800 x 1280, brightness of 450 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 1.55
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 6S3P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 15000
Backlight Voltage Minimum: 15.6
Backlight Voltage Typical: 15.6
Backlight Voltage Maximum: 15.6
Backlight Current Typical (mAh): 60
Maximum Backlight Consumption: 1.2
Typical Backlight Consumption: 1.08
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: MIPI
Signal Channels: 4
LCD Signal VCI: 3.3
LCD Signal VDDI: 1.8
Typical LCD Power Consumption: 0.4
Signal Interface: Connector
Signal Interface Manufacturer: Panasonic
Signal Interface Model: AYF333135
LCD Signal Interface Pins Pitch (mm): 0.3
Signal Interface Connectors: 1
Signal Pins Quantity: 31

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 800 x 1280
Dot Pitch: 0.04
Dot pitch vertical: 0.12
Glare: Glare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 450
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 14
Response Time: 11
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.49 (Max.)(5/13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 10 x 16
Shape: Flat Rectangle
Vertical Active Area: 150.72
Bezel Height: 153.82
Outline Vertical: 162.15
Outline Depth Typical: 2
Outline Depth Max: 3.6000
Mounting: Without
Orientation: Horizontal
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 60
Typical Weight: 60
Maximum Weight: 60

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 60
Storage Temperature Minumum: -20
Storage Temperature Maximum: 70
