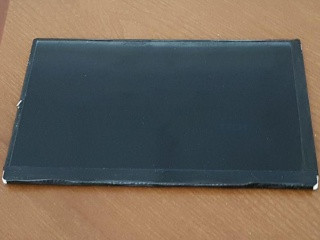

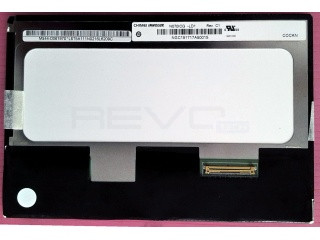

7" Inch TFT-LCD Display

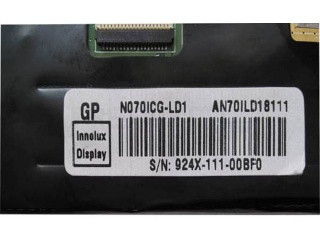

N070ICG-LD1
Innolux

Home
TFT-LCD
Innolux
N070ICG-LD1

7" Inch TFT-LCD Display
N070ICG-LD1
Innolux

Product description

N070ICG-LD1 is a display manufactured by Innolux. It has a resolution of 1280 x 800, brightness of 400 cd/m2 and contrast of 800:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 9S2P
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 12000
Backlight Driver Board: With LED Driver
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: FCI
Signal Interface Model: 10064555-392120HLF
LCD Signal Interface Pins Pitch (mm): 0.3
Signal Interface Connectors: 1
Signal Pins Quantity: 39

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.04
Dot pitch vertical: 0.12
Glare: Glare
Hardness: Hard coating (3H)
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 400
Contrast: 800
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 89
Top Viewing Angle: 89
Right Viewing Angle: 89
Bottom Viewing Angle: 89
Optimal Viewing Direction: Symmetrical
Response Time: 14
Response Time: 11
Chromaticity: 0.31
Chromaticity: 0.32
light uniformity: 1.25/1.43 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 93.6
Bezel Height: 95.6
Outline Vertical: 107
Outline Depth Typical: 2.5
Outline Depth Max: 4.5000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 90
Typical Weight: 90
Maximum Weight: 90

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 60
Storage Temperature Minumum: -20
Storage Temperature Maximum: 70
