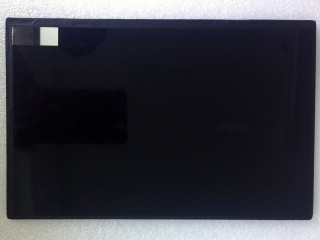

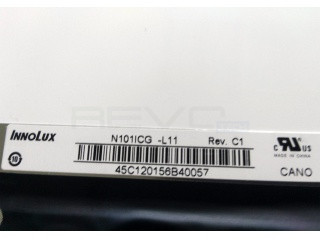

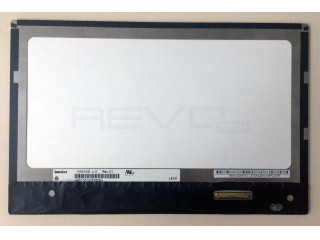

10.1" Inch TFT-LCD Display
N101ICG-L11
Innolux

Product description

N101ICG-L11 is a display manufactured by Innolux. It has a resolution of 1280 x 800, brightness of 350 cd/m2 and contrast of 800:1.

Electrical Specs

Total Power Consumption (Watts): 2.96
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3 strings
Baklight Arrangement: Array
Lamp Lifetime (Time to Half Brightness): 12000
Backlight Voltage Minimum: 8.4
Backlight Voltage Typical: 8.4
Backlight Voltage Maximum: 8.4
Backlight Current Typical (mAh): 178.4
Maximum Backlight Consumption: 1.77
Typical Backlight Consumption: 1.61
Backlight Driver Board: With LED Driver
Minimum Voltage Driver Consumption: 3.2
Maximum Voltage Driver Consumption: 4.2
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Maximum LCD Power Consumption: 0.76
Signal Interface: Connector
Signal Interface Manufacturer: I-PEX
Signal Interface Model: 20455-040E-12
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.06
Dot pitch vertical: 0.17
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 350
Contrast: 800
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Response Time: 14
Response Time: 11
Chromaticity: 0.31
Chromaticity: 0.32
light uniformity: 1.11/1.25 (Typ./Max.)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 10.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 135.6
Bezel Height: 138.25
Outline Vertical: 147.69
Outline Depth Typical: 2.16
Outline Depth Max: 4.5800
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 127.5
Typical Weight: 127.5
Maximum Weight: 127.5

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 60
Storage Temperature Minumum: -20
Storage Temperature Maximum: 70
