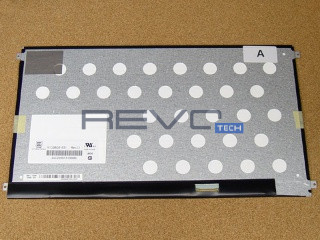

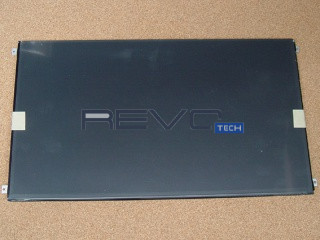

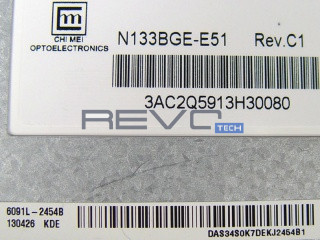

Innolux N133BGE-E51 - TFT-LCD 1366 x 768

Product description

N133BGE-E51 is a display manufactured by Innolux. It has a resolution of 1366 x 768, brightness of 200 cd/m2 and contrast of 400:1.

Electrical Specs

Total Power Consumption (Watts): 2.95
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 9S3P
Baklight Arrangement: 3 rows
Lamp Lifetime (Time to Half Brightness): 15000
Backlight Voltage Minimum: 23.4
Backlight Voltage Typical: 25.2
Backlight Voltage Maximum: 27
Backlight Current Typical (mAh): 23
Backlight Driver Board: With LED Driver
Backlight Connection: Embedded into Signal
Signal type: eDP
Signal Channels: 1
VCC: 3.3
Maximum LCD Power Consumption: 0.75
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.07
Dot pitch vertical: 0.21
Glare: Antiglare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 200
Contrast: 400
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 60
Bottom Viewing Angle: 60
Optimal Viewing Direction: 6 o'clock
Response Time: 8
Response Time: 8
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.43/1.67 (Max.)(5/13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 13.3
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 164.97
Bezel Height: 167.97
Outline Vertical: 177.7
Outline Depth Typical: 3
Outline Depth Max: 5.5000
Mounting: Face mounting holes (4 pcs) on left, right slugs
Orientation: Vertical
Mounting Holes: Face mounting holes (4 pcs) on left, right slugs

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 274.5
Typical Weight: 274.5
Maximum Weight: 274.5

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
