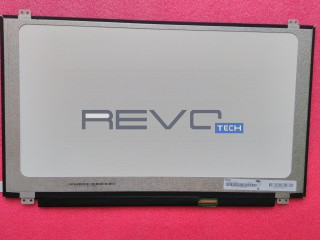

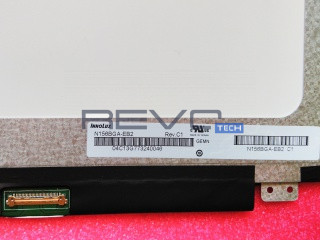

Innolux N156BGA-EB2 - TFT-LCD 1366 x 768

Product description

N156BGA-EB2 is a display manufactured by Innolux. It has a resolution of 1366 x 768, brightness of 220 cd/m2 and contrast of 600:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 1000 units
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 3.4
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 15000
Backlight Voltage Minimum: 28.6
Backlight Voltage Typical: 28.6
Backlight Voltage Maximum: 28.6
Maximum Backlight Consumption: 2.04
Typical Backlight Consumption: 1.97
Backlight Driver Board: With LED Driver
Backlight Connection: Embedded into Signal
Signal type: eDP
Signal Channels: 1
VCC: 3.3
Maximum LCD Power Consumption: 0.85
Signal Interface: Connector
Signal Interface Manufacturer: I-PEX
Signal Interface Model: 20455-030E-12
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: EDP-30P1L-030A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1366 x 768
Dot Pitch: 0.08
Dot pitch vertical: 0.25
Glare: Glare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 220
Contrast: 600
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 45
Color Gamut Type: NTSC
Left Viewing Angle: 45
Top Viewing Angle: 45
Right Viewing Angle: 20
Bottom Viewing Angle: 45
Optimal Viewing Direction: 6 o'clock
Response Time: 3
Response Time: 7
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25 (Max.)
(13 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 15.6
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 193.54
Outline Vertical: 223.8
Mounting: Face mounting holes (8 pcs) on up, down slugs
Orientation: Vertical
Mounting Holes: Face mounting holes (8 pcs) on up, down slugs

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 352.5
Typical Weight: 352.5
Maximum Weight: 352.5

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
