10.1" Inch TFT-LCD Display

NJ101IA-01S
Innolux

Home
TFT-LCD
Innolux
NJ101IA-01S

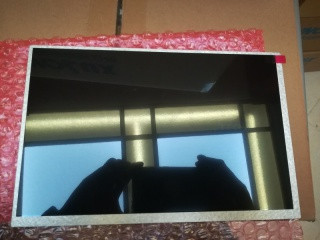

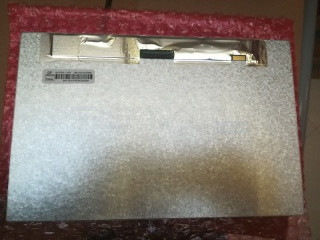

10.1" Inch TFT-LCD Display
NJ101IA-01S
Innolux

Product description

NJ101IA-01S is a display manufactured by Innolux. It has a resolution of 1280 x 800, brightness of 500 cd/m2 and contrast of 800:1.

Electrical Specs

Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 20000
Backlight Voltage Minimum: 16.8
Backlight Voltage Typical: 16.8
Backlight Voltage Maximum: 16.8
Backlight Current Minimum (mAh): -40
Backlight Current Typical (mAh): 240
Backlight Current Maximum (mAh): 280
Typical Backlight Consumption: 4.68
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
LCD Signal AVDD: 8.2
LCD Signal VGH: 22
LCD Signal VGL: -7
LCD Signal VDD: 2.5
Typical LCD Power Consumption: 0.7

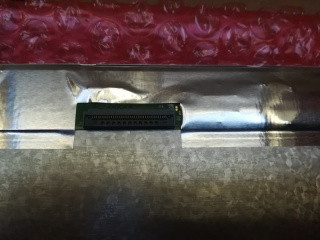

Signal Interface: Connector
Signal Interface Manufacturer: Vigorconn
Signal Interface Model: F62240-H1210B
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.06
Dot pitch vertical: 0.17
Hardness: Hard coating
Reflection: No
Display Type: IPS
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 500
Contrast: 800
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Response Time: 10
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.33 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 10.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 135.6
Bezel Height: 138.1
Outline Vertical: 149.1
Outline Depth Typical: 4.8
Outline Depth Max: 7.7000
Orientation: Vertical

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 292.7
Typical Weight: 292.7
Maximum Weight: 292.7

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
