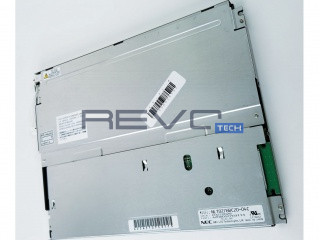

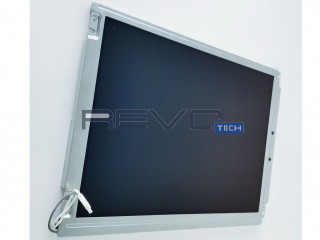

NLT NL10276BC20-04C - TFT-LCD 1024 x 768

Product description

NL10276BC20-04C is a display manufactured by NLT. It has a resolution of 1024 x 768, brightness of 300 cd/m2 and contrast of 300:1.

Electrical Specs

Total Power Consumption (Watts): 6.2
Backlight Location: Edge (Top side)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Backlight Voltage Minimum: 520
Backlight Voltage Typical: 520
Backlight Voltage Maximum: 520
Backlight Current Minimum (mAh): 2
Backlight Current Typical (mAh): 5
Backlight Current Maximum (mAh): 5.5
Backlight Operation Frequency: 65
Typical Backlight Consumption: 5.21
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Typical LCD Power Consumption: 0.99
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.07
Dot pitch vertical: 0.21
Glare: Clear
Hardness: Hard coating (2H)
Reflection: Yes
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 300
Contrast: 300
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 40
Color Gamut Type: NTSC
Left Viewing Angle: 60
Top Viewing Angle: 60
Right Viewing Angle: 45
Bottom Viewing Angle: 60
Optimal Viewing Direction: 6 o'clock
Response Time: 15
Response Time: 40
Chromaticity: 0.32
Chromaticity: 0.34
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 10.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 157.8
Bezel Height: 161.8
Outline Vertical: 185.1
Outline Depth Typical: 11
Outline Depth Max: 11.5000
Mounting: Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Orientation: Vertical
Mounting Holes: Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 540
Typical Weight: 540
Maximum Weight: 540

Temperature Specs

Maximum Operating Temperature: 60
Storage Temperature Minumum: -20
Storage Temperature Maximum: 70
