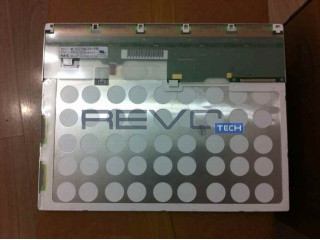

12.1" Inch TFT-LCD Display

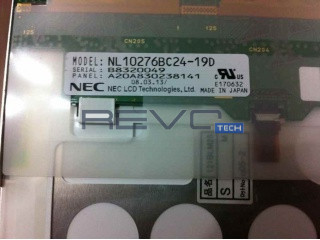

NL10276BC24-19D
NLT

Product description

NL10276BC24-19D is a display manufactured by NLT. It has a resolution of 1024 x 768, brightness of 650 cd/m2 and contrast of 600:1.

Available Stock

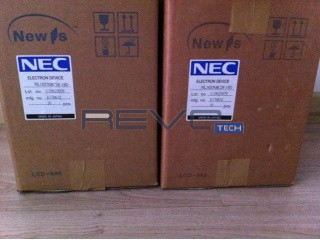

Condition: New Functionally never used, may come with original packaging
Available: 60 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 4.3
Backlight Location: Edge (Top side)
Backlight: WLED
Backlight Lamp Quantity: 9S5P
Baklight Arrangement: 5 rows
Backlight Voltage Minimum: 28.8
Backlight Voltage Typical: 28.8
Backlight Voltage Maximum: 28.8
Backlight Current Minimum (mAh): 20
Backlight Current Typical (mAh): 35
Backlight Current Maximum (mAh): 35
Typical Backlight Consumption: 2.88
Backlight Driver Board: None
Backlight Connection: Embedded into Signal
Signal type: LVDS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Typical LCD Power Consumption: 1.39
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-XB30SL-HF10
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P1C6B-010A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.08
Dot pitch vertical: 0.24
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 650
Contrast: 600
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 40
Color Gamut Type: NTSC
Left Viewing Angle: 70
Top Viewing Angle: 70
Right Viewing Angle: 60
Bottom Viewing Angle: 60
Optimal Viewing Direction: 6 o'clock
Response Time: 6
Response Time: 19
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 12.1
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 184.32
Bezel Height: 187.5
Outline Vertical: 200
Outline Depth Typical: 6.9
Outline Depth Max: 7.4000
Mounting: Without
Orientation: Vertical
Mounting Holes: Without

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 312.5
Typical Weight: 312.5
Maximum Weight: 312.5

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 60
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
