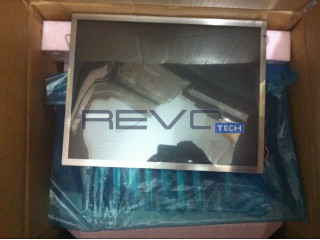

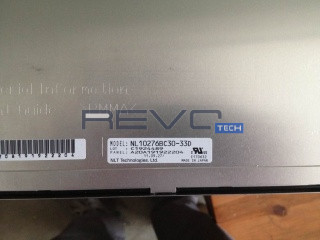

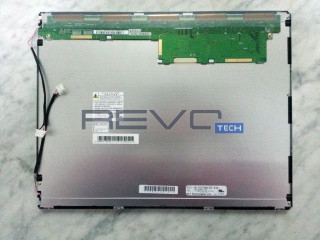

NLT NL10276BC30-33D - TFT-LCD 1024 x 768

Product description

NL10276BC30-33D is a display manufactured by NLT. It has a resolution of 1024 x 768, brightness of 400 cd/m2 and contrast of 500:1.

Electrical Specs

Total Power Consumption (Watts): 10
Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Backlight Voltage Minimum: 560
Backlight Voltage Typical: 560
Backlight Voltage Maximum: 560
Backlight Current Minimum (mAh): 3.5
Backlight Current Typical (mAh): 7.5
Backlight Current Maximum (mAh): 8
Backlight Operation Frequency: 54
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-03VS-1
Blu interface pin pitch mm: 4
Blu interface amount: 2
Blu interface pin amount: 3
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: DF14H-20P-1.25H
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20
Signal Pins Configuration: LVDS-20P1C8B-010G

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.1
Dot pitch vertical: 0.3
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 400
Contrast: 500
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 3
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.20/1.35 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 15
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 228.1
Bezel Height: 231.3
Outline Vertical: 253.5
Outline Depth Typical: 11.5
Outline Depth Max: 12.0000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1010
Typical Weight: 1010
Maximum Weight: 1010

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -20
Storage Temperature Maximum: 80
