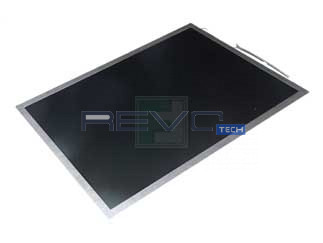

NLT NL10276KC30-43DD - TFT-LCD 1024 x 768

Product description

NL10276KC30-43DD is a display manufactured by NLT. It has a resolution of 1024 x 768, brightness of 450 cd/m2 and contrast of 600:1.

Electrical Specs

Total Power Consumption (Watts): 10.3
Backlight Location: Edge (Bottom side)
Backlight: WLED
Backlight Lamp Quantity: 6 strings
Baklight Arrangement: 6 rows
Lamp Lifetime (Time to Half Brightness): 70000
Backlight Voltage Minimum: 23.9
Backlight Voltage Typical: 23.9
Backlight Voltage Maximum: 23.9
Backlight Current Minimum (mAh): 50
Backlight Current Typical (mAh): 55
Backlight Current Maximum (mAh): 55
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1024 x 768
Dot Pitch: 0.1
Dot pitch vertical: 0.3
Glare: Anti Fingerprint + Antiglare
Hardness: Hard coating (2H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 450
Contrast: 600
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Response Time: 3
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.20/1.35 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 15
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 228.1
Outline Vertical: 253.5
Outline Depth Typical: 14.9
Outline Depth Max: 19.0000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED
Touchscreen Attachment Type: Tape Bonded
Simultaneous Touch Points: 10
Touchscreen Signal Type: USB
Touchscreen Connection: Connector
Touchscreen Controller: With touch controller

Weights specs

Minimum Weight: 1565
Typical Weight: 1565
Maximum Weight: 1565

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -20
Storage Temperature Maximum: 80
