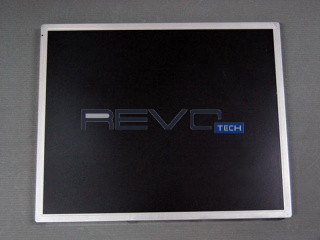

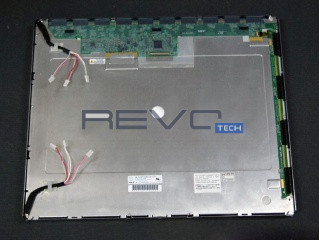

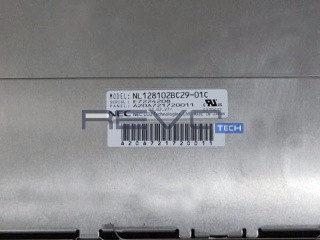

NLT NL128102BC29-01C - TFT-LCD 1280 x 1024

Product description

NL128102BC29-01C is a display manufactured by NLT. It has a resolution of 1280 x 1024, brightness of 270 cd/m2 and contrast of 450:1.

Electrical Specs

Total Power Consumption (Watts): 26.8
Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 6 pcs
Baklight Arrangement: Straight
Backlight Voltage Minimum: 650
Backlight Voltage Typical: 650
Backlight Voltage Maximum: 650
Backlight Current Minimum (mAh): 3.5
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 7
Backlight Operation Frequency: 48
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHSR-02VS-1
Blu interface pin pitch mm: 3.5
Blu interface amount: 6
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 5
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-X30SSL-HF
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30
Signal Pins Configuration: LVDS-30P2C8B-160H

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 1024
Dot Pitch: 0.1
Dot pitch vertical: 0.29
Glare: Antiglare
Hardness: Hard coating (2H)
Reflection: No
Display Type: SFT
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 270
Contrast: 450
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Response Time: 10
Response Time: 10
Chromaticity: 0.3
Chromaticity: 0.32
light uniformity: 1.10/1.25 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 19
Aspect Ratio: 5 x 4
Shape: Flat Rectangle
Vertical Active Area: 301.06
Bezel Height: 305.1
Outline Vertical: 330
Outline Depth Typical: 22
Outline Depth Max: 25.5500
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 3000
Typical Weight: 3000
Maximum Weight: 3000

Temperature Specs

Maximum Operating Temperature: 55
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
