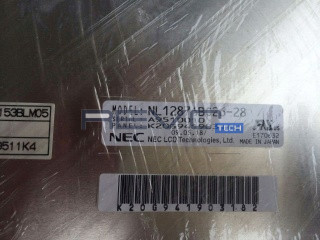

NLT NL12876BC26-28 - TFT-LCD 1280 x 768

Product description

NL12876BC26-28 is a display manufactured by NLT. It has a resolution of 1280 x 768, brightness of 330 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 18
Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 4 pcs
Baklight Arrangement: Straight
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 670
Backlight Voltage Typical: 670
Backlight Voltage Maximum: 670
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 6.5
Backlight Operation Frequency: 43
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 768
Dot Pitch: 0.09
Dot pitch vertical: 0.26
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: UA-SFT
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 330
Contrast: 1000
Colors: 16700000
Gray Scale: 6-bit + Hi-FRC
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Response Time: 14
Response Time: 11
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.10/1.30 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 15.3
Aspect Ratio: 15 x 9
Shape: Flat Rectangle
Vertical Active Area: 200.45
Bezel Height: 202.8
Outline Vertical: 226
Outline Depth Typical: 15.8
Outline Depth Max: 16.8000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1335
Typical Weight: 1335
Maximum Weight: 1335

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 70
Storage Temperature Minumum: -20
Storage Temperature Maximum: 80
