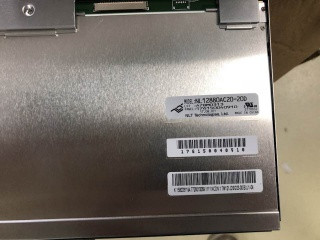

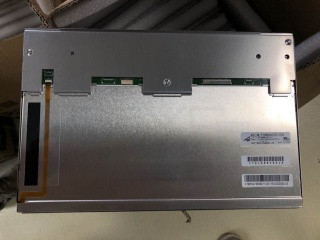

12.1" Inch TFT-LCD Display

NL12880AC20-20D
NLT

Home
TFT-LCD
NLT
NL12880AC20-20D

12.1" Inch TFT-LCD Display
NL12880AC20-20D
NLT

Product description

NL12880AC20-20D is a display manufactured by NLT. It has a resolution of 1280 x 800, brightness of 400 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 7.1
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Driver Board: With LED Driver
Backlight Connection: via Connector
Backlight Interface Manufacturer: JAE
Backlight Interface Model: FI-S6P-HFE
Blu interface pin pitch mm: 1.25
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 8-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-SE20P-HFE
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20
Signal Pins Configuration: LVDS-20P1C8B-170B

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.07
Dot pitch vertical: 0.2
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: UA-SFT
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 400
Contrast: 1000
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 40
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Response Time: 12
Response Time: 13
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 12.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 163.2
Bezel Height: 167.2
Outline Vertical: 180.6
Outline Depth Typical: 8.7
Outline Depth Max: 9.2000
Mounting: Side mounting holes (4 pcs) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4 pcs) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 500
Typical Weight: 500
Maximum Weight: 500

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
