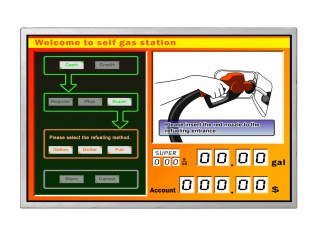

12.1" Inch TFT-LCD Display
NL12880BC20-25F
NLT

Product description

NL12880BC20-25F is a display manufactured by NLT. It has a resolution of 1280 x 800, brightness of 1600 cd/m2 and contrast of 800:1.

Electrical Specs

Total Power Consumption (Watts): 16.9
Backlight Location: Edge
Backlight: WLED
Backlight Lamp Quantity: 3 strings
Baklight Arrangement: 3 rows
Lamp Lifetime (Time to Half Brightness): 60000
Backlight Voltage Minimum: 41.2
Backlight Voltage Typical: 41.2
Backlight Voltage Maximum: 41.2
Backlight Current Minimum (mAh): 110
Backlight Current Typical (mAh): 120
Backlight Current Maximum (mAh): 120
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: SM10B-SHLS-TF(LF)(SN)
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 10
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 1
Signal bits: 6/8-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: JAE
Signal Interface Model: FI-SE20P-HFE
LCD Signal Interface Pins Pitch (mm): 1.25
Signal Interface Connectors: 1
Signal Pins Quantity: 20

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1280 x 800
Dot Pitch: 0.07
Dot pitch vertical: 0.2
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 1600
Contrast: 800
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 8-bit
Gamut Percentage: 50
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Optimal Viewing Direction: 6 o'clock
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: Yes
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 12.1
Aspect Ratio: 16 x 10
Shape: Flat Rectangle
Vertical Active Area: 163.2
Bezel Height: 168.2
Outline Vertical: 180.6
Outline Depth Typical: 8.7
Outline Depth Max: 9.2000
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 470
Typical Weight: 470
Maximum Weight: 470

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
