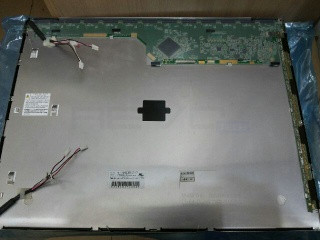

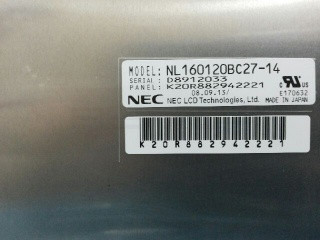

NLT NL160120BC27-14 - TFT-LCD 1600 x 1200

Product description

NL160120BC27-14 is a display manufactured by NLT. It has a resolution of 1600 x 1200, brightness of 250 cd/m2 and contrast of 550:1.

Electrical Specs

Total Power Consumption (Watts): 30.7
Backlight Location: Edge (Top and Bottom)
Backlight: CCFL
Backlight Lamp Quantity: 6 pcs
Baklight Arrangement: Straight
Backlight Voltage Minimum: 750
Backlight Voltage Typical: 750
Backlight Voltage Maximum: 750
Backlight Current Minimum (mAh): 3
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 7
Backlight Operation Frequency: 56
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHSR-02VS-1
Blu interface pin pitch mm: 3.5
Blu interface amount: 6
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: LVDS
Signal Channels: 2
Signal bits: 8-bit
VCC: 12
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: DF19G-30P-1H
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 30

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1600 x 1200
Dot Pitch: 0.09
Dot pitch vertical: 0.27
Glare: Antiglare
Hardness: Hard coating (2H)
Reflection: No
Display Type: SFT
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 550
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 72
Color Gamut Type: NTSC
Left Viewing Angle: 85
Top Viewing Angle: 85
Right Viewing Angle: 85
Bottom Viewing Angle: 85
Optimal Viewing Direction: Symmetrical
Response Time: 11
Response Time: 9
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.15/1.30 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 21.3
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 324
Bezel Height: 330
Outline Vertical: 350
Outline Depth Typical: 25
Outline Depth Max: 25.3000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 3875
Typical Weight: 3875
Maximum Weight: 3875

Temperature Specs

Maximum Operating Temperature: 55
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
