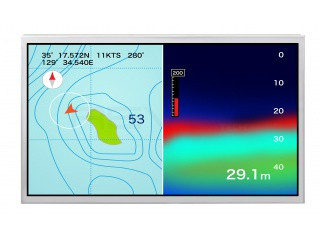

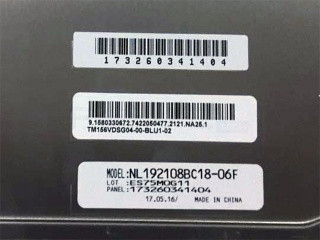

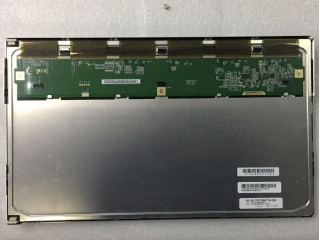

NLT NL192108BC18-06F - TFT-LCD 1920 x 1080 Full HD

Product description

NL192108BC18-06F is a display manufactured by NLT. It has a resolution of 1920 x 1080, brightness of 1500 cd/m2 and contrast of 750:1.

Electrical Specs

Total Power Consumption (Watts): 24.4
Backlight Location: Edge (Top and Bottom)
Backlight: WLED
Backlight Lamp Quantity: 4 strings
Baklight Arrangement: 4 rows
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 38.8
Backlight Voltage Typical: 43.7
Backlight Voltage Maximum: 48.6
Backlight Current Minimum (mAh): 65
Backlight Current Typical (mAh): 70
Backlight Current Maximum (mAh): 70
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BM06B-SHJS-TB(HF), BM06B-SHJS-TB(HF)
Blu interface pin pitch mm: 1
Blu interface amount: 1
Blu interface pin amount: 6
Blu interface pin configuration: 0
Signal type: eDP
Signal Channels: 2
VCC: 3.3
Typical LCD Power Consumption: 1.91
Signal Interface: Connector
Signal Interface Manufacturer: I-PEX
Signal Interface Model: 20455-040E-02
LCD Signal Interface Pins Pitch (mm): 0.5
Signal Interface Connectors: 1
Signal Pins Quantity: 40

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 1920 x 1080
Dot Pitch: 0.1
Dot pitch vertical: 0.18
Glare: Antiglare
Hardness: Hard coating (3H)
Reflection: No
Display Type: UA-SFT
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 1500
Contrast: 750
Colors: 16700000
Gray Scale: 8-bit
Gamut Percentage: 40
Color Gamut Type: NTSC
Left Viewing Angle: 88
Top Viewing Angle: 88
Right Viewing Angle: 88
Bottom Viewing Angle: 88
Optimal Viewing Direction: Symmetrical
Response Time: 15
Response Time: 15
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: Yes
Reverse Scan: No

Mechanical specs

Display Type: LCM
Size: 15.6
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 193.59
Bezel Height: 196.75
Outline Vertical: 215.9
Outline Depth Typical: 15.7
Outline Depth Max: 16.2000
Mounting: Side mounting holes (4-M3) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M3) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 1300
Typical Weight: 1300
Maximum Weight: 1300

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 85
Storage Temperature Minumum: -40
Storage Temperature Maximum: 85
