7" Inch TFT-LCD Display

NL4823BC37-05
NLT

Home
TFT-LCD
NLT
NL4823BC37-05

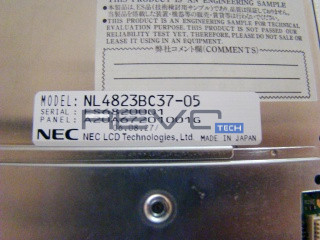

NLT NL4823BC37-05 - TFT-LCD 480 x 234

Product description

NL4823BC37-05 is a display manufactured by NLT. It has a resolution of 480 x 234, brightness of 400 cd/m2 and contrast of 600:1.

Electrical Specs

Total Power Consumption (Watts): 2.7
Backlight Location: Edge (Top side)
Backlight: CCFL
Backlight Lamp Quantity: 1 pcs
Baklight Arrangement: Straight
Backlight Voltage Minimum: 340
Backlight Voltage Typical: 340
Backlight Voltage Maximum: 340
Backlight Current Minimum (mAh): 2
Backlight Current Typical (mAh): 6
Backlight Current Maximum (mAh): 6.5
Backlight Operation Frequency: 51
Typical Backlight Consumption: 1.74
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-02(8.0)VS-1N
Blu interface pin pitch mm: 8
Blu interface amount: 1
Blu interface pin amount: 2
Blu interface pin configuration: 0
Signal type: CMOS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Typical LCD Power Consumption: 0.69
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: DF9C-31P-1V
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 31
Signal Pins Configuration: DRGB-31P1C6B-050A

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 480 x 234
Dot Pitch: 0.11
Dot pitch vertical: 0.37
Glare: Clear
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 400
Contrast: 600
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 40
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 60
Bottom Viewing Angle: 80
Optimal Viewing Direction: 6 o'clock
Response Time: 6
Response Time: 19
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 7
Aspect Ratio: 16 x 9
Shape: Flat Rectangle
Vertical Active Area: 87.05
Bezel Height: 90.5
Outline Vertical: 105.5
Outline Depth Typical: 10.5
Outline Depth Max: 11.0000
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 210
Typical Weight: 210
Maximum Weight: 210

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
