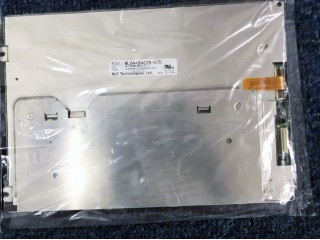

NLT NL6448AC26-47D - TFT-LCD 640 x 480

Product description

NL6448AC26-47D is a display manufactured by NLT. It has a resolution of 640 x 480, brightness of 380 cd/m2 and contrast of 1000:1.

Electrical Specs

Total Power Consumption (Watts): 2.8
Backlight Location: Edge
Backlight: WLED
Lamp Lifetime (Time to Half Brightness): 100000
Backlight Driver Board: With LED Driver
Backlight Connection: via Connector
Signal type: CMOS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.09
Dot pitch vertical: 0.27
Glare: Antiglare
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 380
Contrast: 1000
Colors: 262000
Display colors value 2: 16700000
Gray Scale: 6-bit
Gray method value 2: 6-bit + Hi-FRC
Gamut Percentage: 40
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 65
Response Time: 3
Response Time: 5
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(9 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 8.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 128.16
Bezel Height: 134.6
Outline Vertical: 152.4
Outline Depth Typical: 9
Outline Depth Max: 9.5000
Mounting: Face mounting holes
Orientation: Vertical
Mounting Holes: Face mounting holes

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 292.5
Typical Weight: 292.5
Maximum Weight: 292.5

Temperature Specs

Minimum Operating Temperature: -20
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
