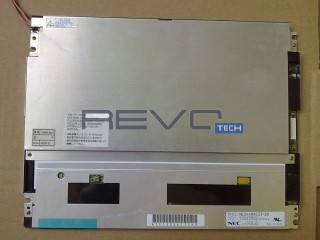

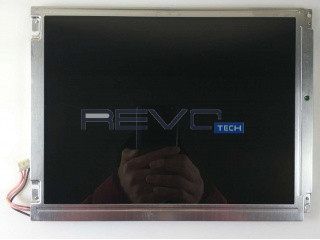

10.4" Inch TFT-LCD Display

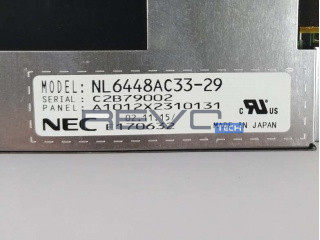

NL6448AC33-29
NLT

Product description

NL6448AC33-29 is a display manufactured by NLT. It has a resolution of 640 x 480, brightness of 250 cd/m2 and contrast of 150:1.

Electrical Specs

Total Power Consumption (Watts): 7.1
Backlight Location: Edge (Top side)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Backlight Voltage Minimum: 510
Backlight Voltage Typical: 510
Backlight Voltage Maximum: 510
Backlight Current Minimum (mAh): 2
Backlight Current Typical (mAh): 5
Backlight Current Maximum (mAh): 5
Backlight Operation Frequency: 54
Typical Backlight Consumption: 5.1
Backlight Driver Board: With Inverter
Backlight Connection: via Connector
Backlight Interface Manufacturer: JAE
Backlight Interface Model: LZ-5P-SL-SMT, IL-Z-3PL-SMTY
Blu interface pin pitch mm: 1.25
Blu interface amount: 1
Blu interface pin amount: 5
Blu interface pin configuration: 0
Signal type: CMOS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: DF9C-31P-1V
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 31
Signal Pins Configuration: DRGB-31P1C6B-010F

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.11
Dot pitch vertical: 0.33
Glare: Clear
Reflection: Yes
Display Type: SFT
Display Mode: Black
Polarizer Type: Transmissive
Brightness: 250
Contrast: 150
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 45
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Optimal Viewing Direction: Symmetrical
Response Time: 50
Response Time: 50
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 10.4
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 158.4
Bezel Height: 161.8
Outline Vertical: 185.1
Outline Depth Typical: 10.5
Outline Depth Max: 11.2000
Mounting: Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Orientation: Vertical
Mounting Holes: Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 525
Typical Weight: 525
Maximum Weight: 525

Temperature Specs

Maximum Operating Temperature: 50
Storage Temperature Minumum: -20
Storage Temperature Maximum: 60
