5.7" Inch TFT-LCD Display

NL6448BC18-01F
NLT

Home
TFT-LCD
NLT
NL6448BC18-01F

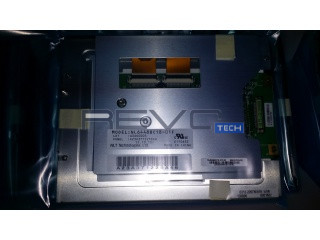

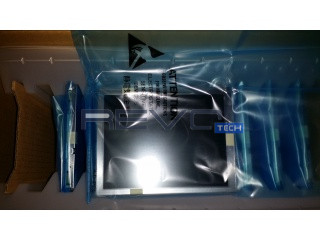

NLT NL6448BC18-01F - TFT-LCD 640 x 480

Product description

NL6448BC18-01F is a display manufactured by NLT. It has a resolution of 640 x 480, brightness of 800 cd/m2 and contrast of 850:1.

Electrical Specs

Total Power Consumption (Watts): 3.3
Backlight Location: Edge (Top and Bottom)
Backlight: WLED
Backlight Lamp Quantity: 9S2P×2CN
Baklight Arrangement: 2 rows × 2CN
Lamp Lifetime (Time to Half Brightness): 50000
Backlight Voltage Minimum: 29.7
Backlight Voltage Typical: 29.7
Backlight Voltage Maximum: 29.7
Backlight Current Minimum (mAh): 25
Backlight Current Typical (mAh): 27.5
Backlight Current Maximum (mAh): 27.5
Backlight Driver Board: None
Backlight Connection: via Connector
Signal type: CMOS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3
Signal Interface: Connector

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.06
Dot pitch vertical: 0.18
Glare: Clear
Hardness: Hard coating (3H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 800
Contrast: 850
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 60
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 80
Optimal Viewing Direction: 6 o'clock
Response Time: 3
Response Time: 15
Chromaticity: 0.3
Chromaticity: 0.35
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: Yes
Reverse Scan: Yes
Reverse Scan Direction: Up/Down/Left/Right

Mechanical specs

Display Type: LCM
Size: 5.7
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 87.12
Bezel Height: 91.2
Outline Vertical: 104.6
Outline Depth Typical: 10.4
Outline Depth Max: 10.9000
Mounting: Side mounting holes (4-M2) on left, right bezel
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2) on left, right bezel

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 170
Typical Weight: 170
Maximum Weight: 170

Temperature Specs

Minimum Operating Temperature: -30
Maximum Operating Temperature: 80
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80

No Documents
