6.5" Inch TFT-LCD Display

NL6448BC20-18D
NLT

Home
TFT-LCD
NLT
NL6448BC20-18D

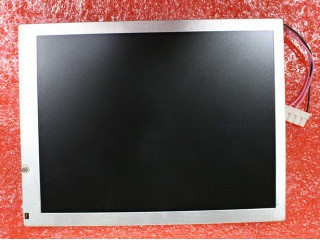

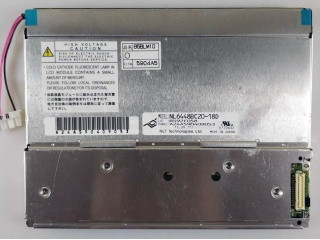

6.5" Inch TFT-LCD Display
NL6448BC20-18D
NLT

Product description

NL6448BC20-18D is a display manufactured by NLT. It has a resolution of 640 x 480, brightness of 400 cd/m2 and contrast of 600:1.

Available Stock

Condition: New Functionally never used, may come with original packaging
Available: 500 units
Added: November 1, 2022
Updated: November 1, 2022

Enter Quantity

Electrical Specs

Total Power Consumption (Watts): 4.4
Backlight Location: Edge (Top side)
Backlight: CCFL
Backlight Lamp Quantity: 2 pcs
Baklight Arrangement: Straight
Backlight Voltage Minimum: 360
Backlight Voltage Typical: 360
Backlight Voltage Maximum: 360
Backlight Current Minimum (mAh): 2
Backlight Current Typical (mAh): 5
Backlight Current Maximum (mAh): 5.5
Backlight Operation Frequency: 55
Backlight Driver Board: None
Backlight Connection: via Connector
Backlight Interface Manufacturer: JST
Backlight Interface Model: BHR-04VS-1
Blu interface pin pitch mm: 4
Blu interface amount: 1
Blu interface pin amount: 4
Blu interface pin configuration: 0
Signal type: CMOS
Signal Channels: 1
Signal bits: 6-bit
VCC: 3.3

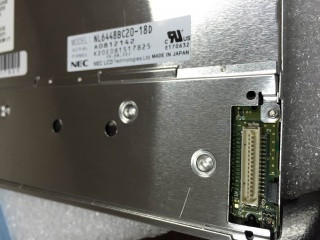

Signal Interface: Connector
Signal Interface Manufacturer: HRS
Signal Interface Model: DF9B-31P-1V
LCD Signal Interface Pins Pitch (mm): 1
Signal Interface Connectors: 1
Signal Pins Quantity: 31
Signal Pins Configuration: DRGB-31P1C6B-010F

Optical specs

Panel type: TFT-LCD
Panel type child: a-Si
Resolution: 640 x 480
Dot Pitch: 0.07
Dot pitch vertical: 0.21
Glare: Antiglare
Hardness: Hard coating (2H)
Reflection: No
Display Type: TN
Display Mode: White
Polarizer Type: Transmissive
Brightness: 400
Contrast: 600
Colors: 262000
Gray Scale: 6-bit
Gamut Percentage: 40
Color Gamut Type: NTSC
Left Viewing Angle: 80
Top Viewing Angle: 80
Right Viewing Angle: 80
Bottom Viewing Angle: 60
Optimal Viewing Direction: 6 o'clock
Response Time: 6
Response Time: 19
Chromaticity: 0.31
Chromaticity: 0.33
light uniformity: 1.25/1.40 (Typ./Max.)
(5 points)
Sunlight Readable: No
Reverse Scan: Yes
Reverse Scan Direction: 180 degrees

Mechanical specs

Display Type: LCM
Size: 6.5
Aspect Ratio: 4 x 3
Shape: Flat Rectangle
Vertical Active Area: 99.36
Bezel Height: 102.8
Outline Vertical: 118
Outline Depth Typical: 10.5
Outline Depth Max: 11.0000
Mounting: Side mounting holes (4-M2)
Orientation: Vertical
Mounting Holes: Side mounting holes (4-M2)

Sensory specs

Cover Lens: NoneNormal Cover GlassStandard CoverglassStrengthened CoverglassCover Lens
Touchscreen Type: NoneResistiveCapacitivePCAPEMBEDDED

Weights specs

Minimum Weight: 210
Typical Weight: 210
Maximum Weight: 210

Temperature Specs

Minimum Operating Temperature: -10
Maximum Operating Temperature: 70
Storage Temperature Minumum: -30
Storage Temperature Maximum: 80
